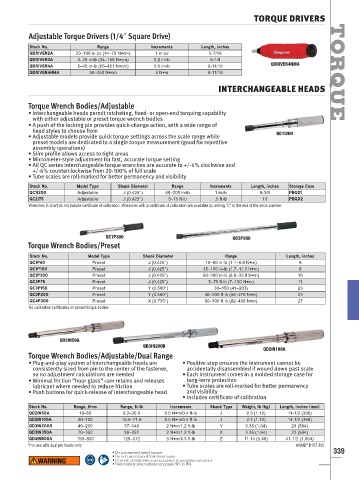

TORQUE DRIVERS

Adjustable Torque Drivers (1/4ʺ Square Drive)
Stock No. Range Increments Length, inches
QDRIVER2A 20–100 in-oz (14–70 N•cm) 1 in-oz 5-7/16
QDRIVER3A 3–15 in-lb (34–169 N•cm) 0.2 in-lb 6-1/4
QDRIVER4A 5–40 in-lb (56–451 N•cm) 0.5 in-lb 6-11/16 QDRIVER4NMA
QDRIVER4NMA 50–450 N•cm 5 N•m 6-11/16 TORQUE

INTERCHANGEABLE HEADS

Torque Wrench Bodies/Adjustable
• Interchangeable heads permit ratcheting, fixed- or open-end torquing capability
with either adjustable or preset torque wrench bodies
• A push of the locking pin provides quick-change action, with a wide range of
head styles to choose from QC1I200
• Adjustable models provide quick torque settings across the scale range while
preset models are dedicated to a single torque measurement (good for repetitive
assembly operations)
• Slim profile allows access to tight areas
• Micrometer-style adjustment for fast, accurate torque setting
• All QC series interchangeable torque wrenches are accurate to +/-4% clockwise and
+/-6% counterclockwise from 20-100% of full scale
• Tube scales are roll-marked for better permanency and visibility
Stock No. Model Type Shank Diameter Range Increments Length, inches Storage Case
QC1I200 Adjustable J (0.425ʺ) 40–200 in-lb 1 in-lb 9-3/8 PBQD1
QC2I75 Adjustable J (0.425ʺ) 5–75 ft-lb .5 ft-lb 13 PBQD2
Wrenches in chart do not include certificate of calibration. Wrenches with a certificate of calibration are available by adding “C” to the end of the stock number.

QC1P300 QC3P200
Torque Wrench Bodies/Preset

Stock No. Model Type Shank Diameter Range Length, inches
QC1P60 Preset J (0.425ʺ) 10–60 in-lb (1.1–6.8 N•m) 6
QC1P100 Preset J (0.425ʺ) 15–100 in-lb (1.7–11.3 N•m) 8
QC1P300 Preset J (0.425ʺ) 60–300 in-lb (6.8–33.9 N•m) 10
QC2P75 Preset J (0.425ʺ) 5–75 ft-lb (7–100 N•m) 11
QC3P150 Preset Y (0.560ʺ) 30–150 (41–203) 23
QC3P200 Preset Y (0.560ʺ) 40–200 ft-lb (55–270 N•m) 23
QC4P300 Preset X (0.735ʺ) 60–300 ft-lb (82–400 N•m) 27
No calibration certificates on preset torque bodies

QD2IN50A
QD3IN200B
QD2IN100A
Torque Wrench Bodies/Adjustable/Dual Range
• Plug-and-play system of interchangeable heads are • Positive stop ensures the instrument cannot be
consistently sized from pin to the center of the fastener, accidentally disassembled if wound down past scale
so no adjustment calculations are needed • Each instrument comes in a molded storage case for
• Minimal friction “hour glass” cam retains and releases long-term protection
lubricant where needed to reduce friction • Tube scales are roll-marked for better permanency
• Push buttons for quick-release of interchangeable head and visibility
• Includes certificate of calibration
Stock No. Range, N•m Range, ft-lb Increments Shank Type Weight, lb (kg) Length, inches (mm)
QD2IN50A 10–50 9.2–35.0 0.5 N•m/0.4 ft-lb J 2.3 (1.12) 14-1/2 (368)
QD2IN100A 20–100 16.6–71.9 0.5 N•m/0.4 ft-lb J 2.3 (1.12) 14-1/2 (368)
QD3IN200B 40–200 37–140 2 N•m/1.2 ft-lb Y 3.36 (1.64) 23 (584)
QD3IN350A 70–350 59–251 2 N•m/1.2 ft-lb X 3.36 (1.64) 23 (584)
QD4IN800A 150–800 129–572 5 N•m/4.3 ft-lb Z 11.14 (5.46) 41-1/2 (1,054)
®
*For use with dual pin heads only ASME B107.300
• Do not exceed rated torque 339
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
