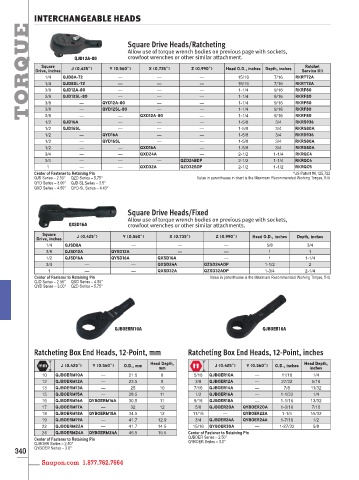

INTERCHANGEABLE HEADS
TORQUE Drive, inches QJD8A-72 Y (0.560”) X (0.735”) Z (0.990”) Head O.D., inches Depth, inches RKRT72A

Square Drive Heads/Ratcheting
Allow use of torque wrench bodies on previous page with sockets,
crowfoot wrenches or other similar attachment.
QJD12A-80
Square
Ratchet
J (0.425”)
Service Kit
—
15/16
7/16
—
—
1/4
15/16
—
—
—
7/16
1/4
QJD8SL-72
RKRT72A
3/8
—
1-1/4
9/16
—
—
QJD12A-80
RKRF80
—
—
3/8
—
1-1/4
9/16
RKRF80
QJD12SL-80
3/8
—
1-1/4
—
—
—
3/8
9/16
RKRF80
QYD12SL-80
—
—
—
9/16
1-1/4
3/8
RKRF80
—
1/2 QJD16A — QYD12A-80 QXD12A-80 — 1-1/4 9/16 RKRF80
—
—
1-5/8
3/4
RKRS936
1/2 QJD16SL — — — 1-5/8 3/4 RKRS80A
1/2 — QYD16A — — 1-5/8 3/4 RKRS936
1/2 — QYD16SL — — 1-5/8 3/4 RKRS80A
1/2 — — QXD16A — 1-5/8 3/4 RKRS80A
3/4 — — QXD24A — 2-1/2 1-1/4 RKRQC4
3/4 — — — QZD24BDP 2-1/2 1-1/4 RKRQC4
1 — — QXD32A QZD32BDP 2-1/2 1-1/2 RKRQC5
Center of Fastener to Retaining Pin *US Patent #6,125,722
QJD Series – 2.50ʺ QZD Series – 5.75ʺ Value in parentheses in chart is the Maximum Recommended Working Torque, ft-lb
QYD Series – 3.00ʺ QJD-SL Series – 3.5ʺ
QXD Series – 4.50ʺ QYD-SL Series – 4.43ʺ
Square Drive Heads/Fixed
Allow use of torque wrench bodies on previous page with sockets,
QXSD16A crowfoot wrenches or other similar attachments.
Square J (0.425”) Y (0.560”) X (0.735”) Z (0.990”) Head O.D., inches Depth, inches
Drive, inches
1/4 QJSD8A — — — 5/8 3/4
3/8 QJSD12A QYSD12A — — 1 1
1/2 QJSD16A QYSD16A QXSD16A — 1 1-1/4
3/4 — — QXSD24A QZSD24ADP 1-1/2 2
1 — — QXSD32A QZSD32ADP 1-3/4 2-1/4
Center of Fastener to Retaining Pin Value in parentheses is the Maximum Recommended Working Torque, ft-lb
QJD Series – 2.50ʺ QXD Series – 4.50ʺ
QYD Series – 3.00ʺ QZD Series – 5.75ʺ
QJBOERM16A QJBOER16A
Ratcheting Box End Heads, 12-Point, mm Ratcheting Box End Heads, 12-Point, inches
Head Depth, Head Depth,
J (0.425”) Y (0.560”) O.D., mm J (0.425”) Y (0.560”) O.D., inches
mm inches
10 QJBOERM10A — 21.5 8 5/16 QJBOER10A — 11/16 1/4
12 QJBOERM12A — 23.5 8 3/8 QJBOER12A — 27/32 5/16
13 QJBOERM13A — 25 10 7/16 QJBOER14A — 7/8 11/32
15 QJBOERM15A — 28.5 11 1/2 QJBOER16A — 1-1/32 1/4
16 QJBOERM16A QYBOERM16A 30.5 11 9/16 QJBOER18A — 1-1/16 13/32
17 QJBOERM17A — 32 12 5/8 QJBOER20A QYBOER20A 1-3/16 7/16
18 QJBOERM18A QYBOERM18A 34.5 12 11/16 — QYBOER22A 1-1/4 15/32
19 QJBOERM19A — 41.7 12.9 3/4 QJBOER24A QYBOER24A 1-7/16 1/2
22 QJBOERM22A — 41.7 14.5 15/16 QYBOER30A — 1-27/32 5/8
24 QJBOERM24A QYBOERM24A 46.5 15.5 Center of Fastener to Retaining Pin
Center of Fastener to Retaining Pin QJBOER Series – 2.50ʺ
QJBOER Series – 2.50ʺ QYBOER Series – 3.0ʺ
QYBOER Series – 3.0ʺ
