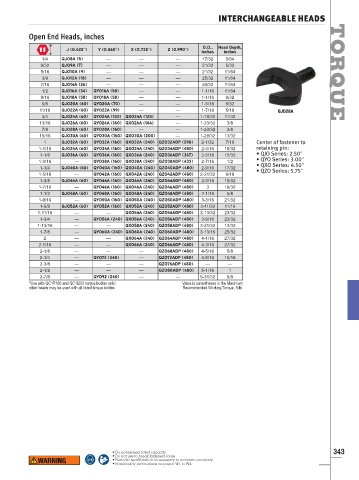

Page 345 - 实耐宝完整US版1500

INTERCHANGEABLE HEADS

Open End Heads, inches

O.D., Head Depth,
J (0.425ʺ) Y (0.560ʺ) X (0.735ʺ) Z (0.990ʺ)
inches inches
1/4 QJO8A (5) — — — 17/32 9/64
9/32 QJO9A (7) — — — 21/32 5/32
5/16 QJO10A (9) — — — 21/32 11/64 TORQUE
3/8 QJO12A (18) — — — 25/32 11/64
7/16 QJO14A (26) — — — 29/32 11/64
1/2 QJO16A (34) QYO16A (58) — — 1-1/16 11/64
9/16 QJO18A (58) QYO18A (58) — — 1-1/16 9/32
5/8 QJO20A (60) QYO20A (70) — — 1-5/16 9/32
11/16 QJO22A (60) QYO22A (99) — — 1-7/16 5/16 QJO28A
3/4 QJO24A (60) QYO24A (125) QXO24A (125) — 1-19/32 11/32
13/16 QJO26A (60) QYO26A (160) QXO26A (164) — 1-23/32 3/8
7/8 QJO28A (60) QYO28A (160) — — 1-23/32 3/8
15/16 QJO30A (60) QYO30A (160) QXO30A (200) — 1-29/32 13/32
1 QJO32A (60) QYO32A (160) QXO32A (240) QZO32ADP (298) 2-1/32 7/16 Center of fastener to
1-1/16 QJO34A (60) QYO34A (160) QXO34A (240) QZO34ADP (480) 2-3/16 15/32 retaining pin:
1-1/8 QJO36A (60) QYO36A (160) QXO36A (240) QZO36ADP (367) 2-5/16 15/32 • QJO Series: 2.50ʺ
1-3/16 — QYO38A (160) QXO38A (240) QZO38ADP (433) 2-7/16 1/2 • QYO Series: 3.00ʺ
1-1/4 QJO40A (60) QYO40A (160) QXO40A (240) QZO40ADP (480) 2-9/16 17/32 • QXO Series: 4.50ʺ
1-5/16 — QYO42A (160) QXO42A (240) QZO42ADP (480) 2-21/32 9/16 • QZO Series: 5.75ʺ
1-3/8 QJO44A (60) QYO44A (160) QXO44A (240) QZO44ADP (480) 2-3/16 19/32
1-7/16 — QYO46A (160) QXO46A (240) QZO46ADP (480) 3 19/32
1-1/2 QJO48A (60) QYO48A (160) QXO48A (240) QZO48ADP (480) 3-1/16 5/8
1-9/16 — QYO50A (160) QXO50A (240) QZO50ADP (480) 3-3/16 21/32
1-5/8 QJO52A (60) QYO52A (160) QXO52A (240) QZO52ADP (480) 3-11/32 11/16
1-11/16 — — QXO54A (240) QZO54ADP (480) 3-13/32 23/32
1-3/4 — QYO56A (240) QXO56A (240) QZO56ADP (480) 3-9/16 23/32
1-13/16 — — QXO58A (240) QZO58ADP (480) 3-21/32 13/32
1-7/8 — QYO60A (240) QXO60A (240) QZO60ADP (480) 3-13/16 25/32
2 — — QXO64A (240) QZO64ADP (480) 4-1/16 27/32
2-1/16 — — QXO66A (240) QZO66ADP (480) 4-3/16 27/32
2-1/8 — — — QZO68ADP (480) 4-5/16 5/8
2-1/4 — QYO72 (240) — QZO72ADP (480) 4-9/16 15/16
2-3/8 — — — QZO76ADP (480) — —
2-1/2 — — — QZO80ADP (480) 5-1/16 1
2-7/8 — QYO92 (240) — — 5-31/32 5/8
*Use with QC1P100 and QC1I200 torque bodies only; Value in parentheses is the Maximum
other heads may be used with all listed torque bodies Recommended Working Torque, ft-lb.

• Do not exceed rated capacity 343
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
