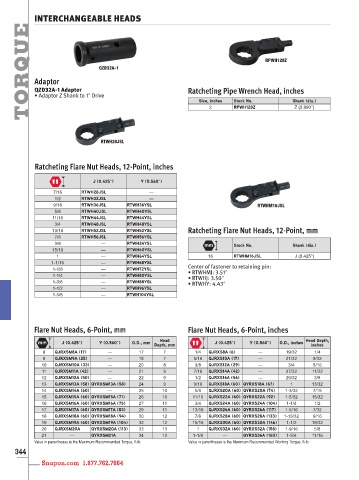

Page 346 - 实耐宝完整US版1500

INTERCHANGEABLE HEADS
TORQUE Adaptor QZD32A-1 Ratcheting Pipe Wrench Head, inches

RPWH128Z

QZD32A-1 Adaptor
• Adaptor Z Shank to 1ʺ Drive
Size, inches
Shank (dia.)
Stock No.

RTWH28JSL 2 RPWH128Z Z (0.990ʺ)

Ratcheting Flare Nut Heads, 12-Point, inches

J (0.425ʺ) Y (0.560ʺ)
7/16 RTWH28JSL —
1/2 RTWH32JSL —
9/16 RTWH36JSL RTWH36YSL RTWHM16JSL
5/8 RTWH40JSL RTWH40YSL
11/16 RTWH44JSL RTWH44YSL
3/4 RTWH48JSL RTWH48YSL
13/16 RTWH52JSL RTWH52YSL Ratcheting Flare Nut Heads, 12-Point, mm
7/8 RTWH56JSL RTWH56YSL
3/8 — RTWH24YSL
Stock No. Shank (dia.)
15/16 — RTWH60YSL
1 — RTWH64YSL 16 RTWHM16JSL J (0.425ʺ)
1-1/16 — RTWH68YSL
1-1/8 — RTWH72YSL Center of fastener to retaining pin:
1-1/4 — RTWH80YSL • RTWHMJ: 3.51ʺ
• RTWHJ: 3.50ʺ
1-3/8 — RTWH88YSL • RTWHY: 4.43ʺ
1-1/2 — RTWH96YSL
1-5/8 — RTWH104YSL

Flare Nut Heads, 6-Point, mm Flare Nut Heads, 6-Point, inches
Head Head Depth,
J (0.425ʺ) Y (0.560ʺ) O.D., mm J (0.425ʺ) Y (0.560ʺ) O.D., inches
Depth, mm inches
8 QJRXSM8A (17) — 17 7 1/4 QJRXS8A (6) — 19/32 1/4
9 QJRXSM9A (25) — 18 7 5/16 QJRXS10A (17) — 21/32 9/32
10 QJRXSM10A (33) — 20 8 3/8 QJRXS12A (29) — 3/4 5/16
11 QJRXSM11A (42) — 21 9 7/16 QJRXS14A (42) — 27/32 11/32
12 QJRXSM12A (50) — 22 9 1/2 QJRXS16A (54) — 29/32 3/8
13 QJRXSM13A (58) QYRXSM13A (58) 24 9 9/16 QJRXS18A (60) QYRXS18A (67) 1 13/32
14 QJRXSM14A (60) — 25 10 5/8 QJRXS20A (60) QYRXS20A (74) 1-3/32 7/16
15 QJRXSM15A (60) QYRXSM15A (71) 26 10 11/16 QJRXS22A (60) QYRXS22A (92) 1-5/32 15/32
16 QJRXSM16A (60) QYRXSM16A (75) 27 11 3/4 QJRXS24A (60) QYRXS24A (104) 1-1/4 1/2
17 QJRXSM17A (60) QYRXSM17A (83) 29 11 13/16 QJRXS26A (60) QYRXS26A (117) 1-5/16 7/32
18 QJRXSM18A (60) QYRXSM18A (94) 30 12 7/8 QJRXS28A (60) QYRXS28A (133) 1-13/32 9/16
19 QJRXSM19A (60) QYRXSM19A (104) 32 12 15/16 QJRXS30A (60) QYRXS30A (146) 1-1/2 19/32
20 QJRXSM20A QYRXSM20A (113) 33 13 1 QJRXS32A (60) QYRXS32A (158) 1-9/16 5/8
21 — QYRXSM21A 34 13 1-1/8 — QYRXS36A (160) 1-3/4 11/16
Value in parentheses is the Maximum Recommended Torque, ft-lb. Value in parentheses is the Maximum Recommended Working Torque, ft-lb.
