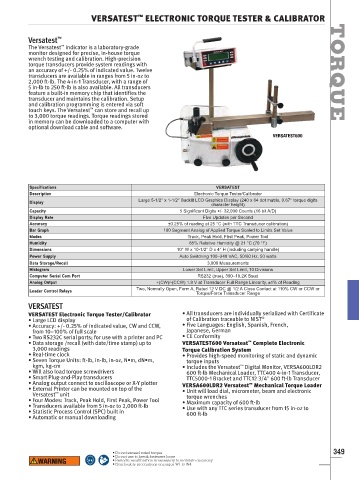

VERSATEST ELECTRONIC TORQUE TESTER & CALIBRATOR

Versatest ™
™
The Versatest indicator is a laboratory-grade
monitor designed for precise, in-house torque
wrench testing and calibration. High-precision
torque transducers provide system readings with
an accuracy of +/- 0.25% of indicated value. Twelve TORQUE
transducers are available in ranges from 5 in-oz to
2,000 ft-lb. The 4-in-1 Transducer, with a range of
5 in-lb to 250 ft-lb is also available. All transducers
feature a built-in memory chip that identifies the
transducer and maintains the calibration. Setup
and calibration programming is entered via soft
™
touch keys. The Versatest can store and recall up
to 3,000 torque readings. Torque readings stored
in memory can be downloaded to a computer with
optional download cable and software.
VERSATEST600

Specifications VERSATEST
Description Electronic Torque Tester/Calibrator
Large 5-1/2ʺ x 1-1/2ʺ Backlit LCD Graphics Display (240 x 64 dot matrix, 0.67ʺ torque digits
Display
character height)
Capacity 5 Significant Digits +/- 32,000 Counts (16 bit A/D)
Display Rate Five Updates per Second
Accuracy ±0.25% of reading at 25 °C (with TTC Transducer calibration)
Bar Graph 100 Segment Analog of Applied Torque Scaled to Limits Set Value
Modes Track, Peak Hold, First Peak, Power Tool
Humidity 85% Relative Humidity @ 21 °C (70 °F)
Dimensions 10ʺ W x 10-1/2ʺ D x 4ʺ H (including carrying handle)
Power Supply Auto Switching 100–240 VAC, 50/60 Hz, 50 watts
Data Storage/Recall 3,000 Measurements
Histogram Lower Set Limit, Upper Set Limit, 10 Divisions
Computer Serial Com Port RS232 (true), 300–19.2K Baud
Analog Output +(CW)/-(CCW) 1.8 V at Transducer Full Range Linearity, ±1% of Reading
Two, Normally Open, Form A, Rated 12 V DC @ 1/2 A Close Contact at 110% CW or CCW or
Loader Control Relays Torque/Force Transducer Range
VERSATEST
VERSATEST Electronic Torque Tester/Calibrator • All transducers are individually serialized with Certificate
• Large LCD display of Calibration traceable to NIST ®
• Accuracy: +/- 0.25% of indicated value, CW and CCW, • Five Languages: English, Spanish, French,
from 10–100% of full scale Japanese, German
• Two RS232C serial ports; for use with a printer and PC • CE Conformity
• Data storage /recall (with date/time stamp) up to VERSATEST600 Versatest Complete Electronic
™
3,000 readings Torque Calibration System
• Real-time clock • Provides high-speed monitoring of static and dynamic
• Seven Torque Units: ft-lb, in-lb, in-oz, N•m, dN•m, torque inputs
kgm, kg-cm • Includes the Versatest Digital Monitor, VERSA600LDR2
™
• Will also load torque screwdrivers 600 ft-lb Mechanical Loader, TTC400 4-in-1 Transducer,
• Smart Plug-and-Play transducers TTC5000-1 Bracket and TTC12 3/4ʺ 600 ft-lb Transducer
• Analog output connect to oscilloscope or X-Y plotter VERSA600LDR2 Versatest Mechanical Torque Loader
™
• External Printer can be mounted on top of the • Unit will load dial, micrometer, beam and electronic
™
Versatest unit torque wrenches
• Four Modes: Track, Peak Hold, First Peak, Power Tool • Maximum capacity of 600 ft-lb
• Transducers available from 5 in-oz to 2,000 ft-lb • Use with any TTC series transducer from 15 in-oz to
• Statistic Process Control (SPC) built in 600 ft-lb
• Automatic or manual downloading

• Do not exceed rated torque 349
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
