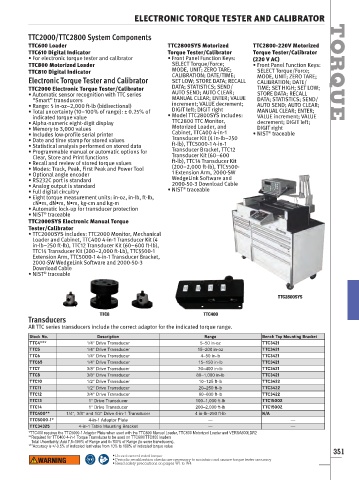

ELECTRONIC TORQUE TESTER AND CALIBRATOR

TTC2000/TTC2800 System Components
TTC600 Loader TTC2800SYS Motorized TTC2800-220V Motorized
TTC610 Digital Indicator Torque Tester/Calibrator Torque Tester/Calibrator
• For electronic torque tester and calibrator • Front Panel Function Keys: (220 V AC)
TTC800 Motorized Loader SELECT Torque/Force; • Front Panel Function Keys:
TTC810 Digital Indicator MODE, UNIT; ZERO TARE; SELECT Torque/Force; TORQUE
CALIBRATION; DATE/TIME; MODE, UNIT; ZERO TARE;
Electronic Torque Tester and Calibrator SET LOW; STORE DATA; RECALL CALIBRATION; DATE/
TTC2000 Electronic Torque Tester/Calibrator DATA; STATISTICS; SEND/ TIME; SET HIGH; SET LOW;
• Automatic sensor recognition with TTC series AUTO SEND; AUTO CLEAR; STORE DATA; RECALL
“Smart” transducers MANUAL CLEAR; ENTER; VALUE DATA; STATISTICS; SEND/
• Range: 5 in-oz–2,000 ft-lb (bidirectional) increment; VALUE decrement; AUTO SEND; AUTO CLEAR;
• Total uncertainty (10–100% of range): ± 0.25% of DIGIT left; DIGIT right MANUAL CLEAR; ENTER;
indicated torque value • Model TTC2800SYS includes: VALUE increment; VALUE
• Alpha-numeric eight-digit display TTC2800 TTC Monitor, decrement; DIGIT left;
• Memory to 3,000 values Motorized Loader, and DIGIT right
®
• Includes low-profile serial printer Cabinet, TTC400 4-in-1 • NIST traceable
• Date and time stamp for stored values Transducer Kit (4 in-lb–250
• Statistical analysis performed on stored data ft-lb), TTC5000-1 4-in-1
• Programmable manual or automatic options for Transducer Bracket, TTC12
Clear, Store and Print functions Transducer Kit (60–600
• Recall and review of stored torque values ft-lb), TTC14 Transducer Kit
• Modes: Track, Peak, First Peak and Power Tool (200–2,000 ft-lb), TTC5500-
• Optional angle encoder 1 Extension Arm, 2000-SW
• RS232C port is standard WedgeLink Software and
• Analog output is standard 2000-50-3 Download Cable
®
• Full digital circuitry • NIST traceable
• Eight torque measurement units: in-oz, in-lb, ft-lb,
cN•m, dN•m, N•m, kg-cm and kg-m
• Automatic lock-up for transducer protection
• NIST traceable
®
TTC2000SYS Electronic Manual Torque
Tester/Calibrator
• TTC2000SYS includes: TTC2000 Monitor, Mechanical
Loader and Cabinet, TTC400 4-in-1 Transducer Kit (4
in-lb–250 ft-lb), TTC12 Transducer Kit (60–600 ft-lb),
TTC14 Transducer Kit (200–2,000 ft-Lb), TTC5500-1
Extension Arm, TTC5000-1 4-in-1 Transducer Bracket,
2000-SW WedgeLink Software and 2000-50-3
Download Cable
®
• NIST traceable

TTC2800SYS

TTC8 TTC400
Transducers
All TTC series transducers include the correct adaptor for the indicated torque range.
Stock No. Description Range Bench Top Mounting Bracket
TTC4*** 1/4ʺ Drive Transducer 5–50 in-oz TTC3421
TTC5 1/4ʺ Drive Transducer 15–200 in-oz TTC3421
TTC6 1/4ʺ Drive Transducer 4–50 in-lb TTC3421
TTC65 1/4ʺ Drive Transducer 15–150 in-lb TTC3421
TTC7 3/8ʺ Drive Transducer 30–400 in-lb TTC3421
TTC8 3/8ʺ Drive Transducer 80–1,000 in-lb TTC3421
TTC10 1/2ʺ Drive Transducer 10–125 ft-lb TTC3422
TTC11 1/2ʺ Drive Transducer 20–250 ft-lb TTC3422
TTC12 3/4ʺ Drive Transducer 60–600 ft-lb TTC3422
TTC13 1ʺ Drive Transducer 100–1,000 ft-lb TTC15002
TTC14 1ʺ Drive Transducer 200–2,000 ft-lb TTC15002
TTC400** 1/4ʺ, 3/8ʺ and 1/2ʺ Drive 4-in-1 Transducer 4 in-lb–250 ft-lb N/A
TTC5000-1* 4-in-1 Adaptor Plate — —
TTC34325 4-in-1 Table Mounting Bracket — —
*TTC400 requires the TTC5000-1 Adaptor Plate when used with the TTC600 Manual Loader, TTC800 Motorized Loader and VERSA600LDR2
** Required for TTC400 4-in-1 Torque Transducer to be used on TTC600/TTC800 loaders
Total Uncertainty: Add 7.5–100% of Range and 8–100% of Range (to some transducers).
***Accuracy is +/-0.5% of indicated test value from 10% to 100% of indicated torque value
351
• Do not exceed rated torque
• Periodic recalibration checks are necessary to maintain and assure torque tester accuracy
• Read safety precautions on pages W1 to W4
