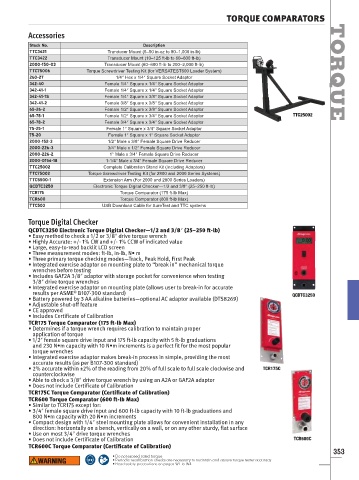

TORQUE COMPARATORS

Accessories
Stock No. Description
TTC3421 Tranducer Mount (5–50 in-oz to 80–1,000 in-lb)
TTC3422 Transducer Mount (10–125 ft-lb to 60–600 ft-lb)
2000-150-03 Transducer Mount (60–600 ft-lb to 200–2,000 ft-lb)
TTC75006 Torque Screwdriver Testing Kit (for VERSATEST600 Loader System) TORQUE
260-27 1/4ʺ Hex x 1/4ʺ Square Socket Adaptor
342-40 Female 1/4ʺ Square x 1/4ʺ Square Socket Adaptor
342-41-1 Female 1/4ʺ Square x 1/4ʺ Square Socket Adaptor
342-41-1S Female 1/4ʺ Square x 3/8ʺ Square Socket Adaptor
342-41-2 Female 3/8ʺ Square x 3/8ʺ Square Socket Adaptor
65-26-2 Female 1/2ʺ Square x 3/8ʺ Square Socket Adaptor
65-78-1 Female 1/2ʺ Square x 3/4ʺ Square Socket Adaptor TTC25002
65-78-2 Female 3/4ʺ Square x 3/4ʺ Square Socket Adaptor
75-25-1 Female 1ʺ Square x 3/4ʺ Square Socket Adaptor
75-20 Female 1ʺ Square x 1ʺ Square Socket Adaptor
2000-152-3 1/2ʺ Male x 3/8ʺ Female Square Drive Reducer
2000-226-3 3/4ʺ Male x 1/2ʺ Female Square Drive Reducer
2000-226-2 1ʺ Male x 3/4ʺ Female Square Drive Reducer
2000-0154-18 1-1/4ʺ Male x 3/4ʺ Female Square Drive Reducer
TTC25002 Complete Calibration Stand Kit (Including Adaptors)
TTC75002 Torque Screwdriver Testing Kit (for 2800 and 2000 Series Systems)
TTC5500-1 Extension Arm (For 2000 and 2800 Series Loaders)
QCDTC3250 Electronic Torque Digital Checker—1/2 and 3/8ʺ (25–250 ft-lb)
TCR175 Torque Comparator (175 ft-lb Max)
TCR600 Torque Comparator (600 ft-lb Max)
TTC503 USB Download Cable for SureTest and TTC systems

Torque Digital Checker
QCDTC3250 Electronic Torque Digital Checker—1/2 and 3/8ʺ (25–250 ft-lb)
• Easy method to check a 1/2 or 3/8ʺ drive torque wrench
• Highly Accurate: +/- 1% CW and +/- 1% CCW of indicated value
• Large, easy-to-read backlit LCD screen
• Three measurement modes: ft-lb, in-lb, N• m
• Three primary torque checking modes—Track, Peak Hold, First Peak
• Integrated exercise adaptor on mounting plate to “break in” mechanical torque
wrenches before testing
• Includes GAF2A 3/8ʺ adaptor with storage pocket for convenience when testing
3/8ʺ drive torque wrenches
• Integrated exercise adaptor on mounting plate (allows user to break-in for accurate
®
results per ASME B107-300 standard) QCDTC3250

• Battery powered by 3 AA alkaline batteries—optional AC adaptor available (DTS8269)
• Adjustable shut-off feature
• CE approved
• Includes Certificate of Calibration
TCR175 Torque Comparator (175 ft-lb Max)
• Determines if a torque wrench requires calibration to maintain proper
application of torque
• 1/2ʺ female square drive input and 175 ft-lb capacity with 5 ft-lb graduations
and 230 N•m capacity with 10 N•m increments is a perfect fit for the most popular
torque wrenches
• Integrated exercise adaptor makes break-in process in simple, providing the most
accurate results (as per B107-300 standard)
• 2% accurate within ±2% of the reading from 20% of full scale to full scale clockwise and TCR175C
counterclockwise
• Able to check a 3/8ʺ drive torque wrench by using an A2A or GAF2A adaptor
• Does not include Certificate of Calibration
TCR175C Torque Comparator (Certificate of Calibration)
TCR600 Torque Comparator (600 ft-lb Max)
• Similar to TCR175 except for:
• 3/4ʺ female square drive input and 600 ft-lb capacity with 10 ft-lb graduations and
800 N•m capacity with 20 N•m increments
• Compact design with 1/4ʺ steel mounting plate allows for convenient installation in any
direction: horizontally on a bench, vertically on a wall, or on any other sturdy, flat surface
• Use on most 3/4ʺ drive torque wrenches
• Does not include Certificate of Calibration TCR600C
TCR600C Torque Comparator (Certificate of Calibration)
353
• Do not exceed rated torque
• Periodic recalibration checks are necessary to maintain and assure torque tester accuracy
• Read safety precautions on pages W1 to W4
