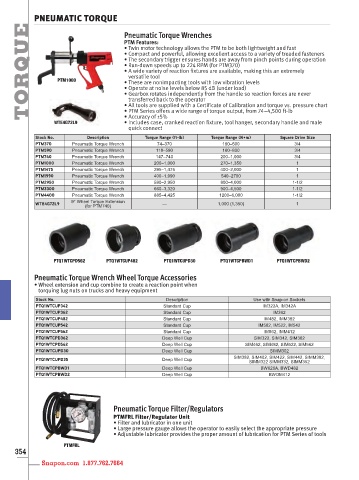

PNEUMATIC TORQUE Pneumatic Torque Wrenches
TORQUE PTM1000 • Twin motor technology allows the PTM to be both lightweight and fast

PTM Features:

• Compact and powerful, allowing excellent access to a variety of treaded fasteners
• The secondary trigger ensures hands are away from pinch points during operation
• Run-down speeds up to 224 RPM (for PTM370)
• A wide variety of reaction fixtures are available, making this an extremely
versatile tool
• These are nonimpacting tools with low vibration levels
• Operate at noise levels below 85 dB (under load)
• Gearbox rotates independently from the handle so reaction forces are never
transferred back to the operator
• PTM Series offers a wide range of torque output, from 74–4,500 ft-lb
• Accuracy of ±5%
• Includes case, cranked reaction fixture, tool hanger, secondary handle and male
WTE4G72L9 • All tools are supplied with a Certificate of Calibration and torque vs. pressure chart
quick connect
Stock No. Description Torque Range (ft-lb) Torque Range (N•m) Square Drive Size
PTM370 Pneumatic Torque Wrench 74–370 100–500 3/4
PTM590 Pneumatic Torque Wrench 118–590 160–800 3/4
PTM740 Pneumatic Torque Wrench 147–740 200–1,000 3/4
PTM1000 Pneumatic Torque Wrench 200–1,000 270–1,350 1
PTM1475 Pneumatic Torque Wrench 295–1,475 400–2,000 1
PTM1990 Pneumatic Torque Wrench 400–1,990 540–2700 1
PTM2950 Pneumatic Torque Wrench 590–2,950 800–4,000 1-1/2
PTM3300 Pneumatic Torque Wrench 660–3,320 900–4,500 1-1/2
PTM4400 Pneumatic Torque Wrench 885–4,425 1200–6,000 1-1/2
9ʺ Wheel Torque Extension
WTE4G72L9 — 1,000 (1,350) 1
(for PTM740)

PTQ1WTCPD562 PTQ1WTCUP482 PTQ1WTCUPD30 PTQ1WTCPBWD1 PTQ1WTCPBWD2
Pneumatic Torque Wrench Wheel Torque Accessories
• Wheel extension and cup combine to create a reaction point when
torquing lug nuts on trucks and heavy equipment
Stock No. Description Use with Snap-on Sockets
PTQ1WTCUP342 Standard Cup IM322A, IM342A
PTQ1WTCUP362 Standard Cup IM362
PTQ1WTCUP482 Standard Cup IM482, IMM382
PTQ1WTCUP542 Standard Cup IM502, IM522, IM542
PTQ1WTCUP562 Standard Cup IM562, IMM412
PTQ1WTCPD362 Deep Well Cup SIM322, SIM342, SIM362
PTQ1WTCPD562 Deep Well Cup SIM462, SIM482, SIM522, SIM562
PTQ1WTCUPD30 Deep Well Cup SIMM302
PTQ1WTCUPD35 Deep Well Cup SIM382, SIM402, SIM422, SIM442, SIMM302,
SIMM322 SIMM332, SIMM352
PTQ1WTCPBWD1 Deep Well Cup BW626A, BWD482
PTQ1WTCPBWD2 Deep Well Cup BWDM412

Pneumatic Torque Filter/Regulators
PTMFRL Filter/Regulator Unit
• Filter and lubricator in one unit
• Large pressure gauge allows the operator to easily select the appropriate pressure
• Adjustable lubricator provides the proper amount of lubrication for PTM Series of tools
PTMFRL
354
