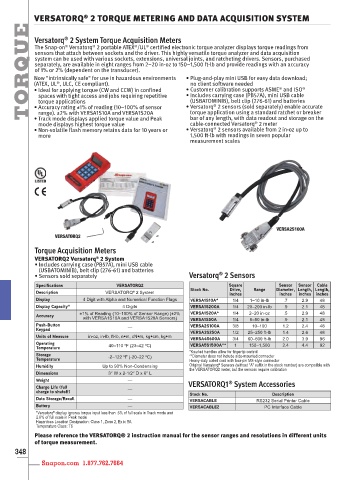

VERSATORQ 2 TORQUE METERING AND DATA ACQUISITION SYSTEM
®
TORQUE Now "intrinsically safe" for use in hazardous environments • Plug-and-play mini USB for easy data download;

Versatorq 2 System Torque Acquisition Meters
®
®
®
®
®
The Snap-on Versatorq 2 portable ATEX /UL certified electronic torque analyzer displays torque readings from
sensors that attach between sockets and the driver. This highly versatile torque analyzer and data acquisition
system can be used with various sockets, extensions, universal joints, and ratcheting drivers. Sensors, purchased
separately, are available in eight ranges from 2–20 in-oz to 150–1,500 ft-lb and provide readings with an accuracy
of 1% or 2% (dependent on the transducer).
no client software needed
®
(ATEX, UL , ULC, CE compliant).
• Customer calibration supports ASME and ISO
®
®
• Ideal for applying torque (CW and CCW) in confined
• Includes carrying case (PB57A), mini USB cable
spaces with tight access and jobs requiring repetitive
(USBATOMINIB), belt clip (276-61) and batteries
torque applications
®
• Accuracy rating ±1% of reading (10–100% of sensor
torque application using a standard ratchet or breaker
range). ±2% with VERSA1S10A and VERSA1S20A
bar of any length, with data readout and storage on the
• Track mode displays applied torque value and Peak
cable-connected Versatorq 2 meter
®
mode displays highest torque value • Versatorq 2 sensors (sold separately) enable accurate
®
• Non-volatile flash memory retains data for 10 years or • Versatorq 2 sensors available from 2 in-oz up to
more 1,500 ft-lb with readings in seven popular
measurement scales

VERSA2S100A
VERSATORQ2
Torque Acquisition Meters
VERSATORQ2 Versatorq 2 System
®
• Includes carrying case (PB57A), mini USB cable
(USBATOMINIB), belt clip (276-61) and batteries
®
• Sensors sold separately Versatorq 2 Sensors
Specifications VERSATORQ2 Square Sensor Sensor Cable
Stock No. Drive, Range Diameter, Length, Length,
®
Description VERSATORQ 2 System inches inches inches inches
Display 4 Digit with Alpha and Numerical Function Flags VERSA1S10A* 1/4 1–10 in-lb .7 2.9 48
Display Capacity* 4 Digits VERSA1S200A 1/4 20–200 in-lb .9 2.1 48
±1% of Reading (10–100% of Sensor Range) (±2% VERSA1S20A* 1/4 2–20 in-oz .5 2.9 48
Accuracy with VERSA1S10A and VERSA1S20A Sensors) VERSA1S50A 1/4 5–50 in-lb .9 2.1 48
Push-Button VERSA2S100A 3/8 10–100 1.2 2.4 48
Keypad —
VERSA3S250A 1/2 25–250 ft-lb 1.4 2.6 48
Units of Measure in-oz, in-lb, ft-lb, n•m, cN•m, kg•cm, kg•m
VERSA4S600A 3/4 60–600 ft-lb 2.0 3.9 96
Operating VERSA5S1500A** 1 150–1,500 2.4 4.4 92
Temperature 40–110 ºF (23–42 ºC)
*Knurled handles allow for fingertip control
Storage **Diameter does not include side-mounted connector
Temperature -2–122 ºF (-20–22 ºC) Heavy-duty coiled cord with four-pin MS-style connector
®
Humidity Up to 90% Non-Condensing Original Versatorq Sensors (without “A” suffix in the stock number) are compatible with
the VERSATORQ2 meter, but the sensors require calibration
Dimensions 3ʺ W x 2-1/2ʺ D x 6ʺ L
Weight —
®
VERSATORQ1 System Accessories
Charge Life (full
charge to shutoff) —
Stock No. Description
Data Storage/Recall —
VERSACABLE RS232 Serial Printer Cable
Battery — VERSACABLE2 PC Interface Cable
®
*Versatorq display ignores torque input less than .5% of full scale in Track mode and
2.0% of full scale in Peak mode
Hazardous Location Designation: Class 1, Zone 2, Ex ic !!A
Temperature Class: T6
Please reference the VERSATORQ® 2 instruction manual for the sensor ranges and resolutions in different units
of torque measurement.
