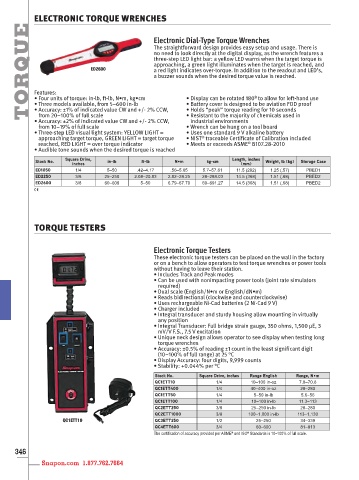

ELECTRONIC TORQUE WRENCHES
TORQUE Features: ED2600 The straightforward design provides easy setup and usage. There is

Electronic Dial-Type Torque Wrenches
no need to look directly at the digital display, as the wrench features a
three-step LED light bar: a yellow LED warns when the target torque is
approaching, a green light illuminates when the target is reached, and
a red light indicates over-torque. In addition to the readout and LED’s,
a buzzer sounds when the desired torque value is reached.

• Four units of torque: in-lb, ft-lb, N•m, kg•cm
• Three models available, from 5–600 in-lb
• Battery cover is designed to be aviation FOD proof
• Holds “peak” torque reading for 10 seconds
• Accuracy: ±1% of indicated value CW and +/- 2% CCW,
from 20–100% of full scale
• Resistant to the majority of chemicals used in
• Accuracy: ±2% of indicated value CW and +/- 2% CCW, • Display can be rotated 180º to allow for left-hand use
industrial environments
from 10–19% of full scale • Wrench can be hung on a tool board
• Three-step LED visual light system: YELLOW LIGHT = • Uses one standard 9 V alkaline battery
approaching target torque, GREEN LIGHT = target torque • NIST traceable Certificate of Calibration included
®
®
reached, RED LIGHT = over torque indicator • Meets or exceeds ASME B107.28-2010
• Audible tone sounds when the desired torque is reached
Square Drive, Length, inches
Stock No. in-lb ft-lb N•m kg-cm Weight, lb (kg) Storage Case
inches (mm)
ED1050 1/4 5–50 .42–4.17 .56–5.65 5.7–57.61 11.5 (292) 1.25 (.57) PBED1
ED2250 3/8 25–250 2.08–20.83 2.82–28.25 28–288.03 14.5 (368) 1.51 (.68) PBED2
ED2600 3/8 60–600 5–50 6.79–67.79 69–691.27 14.5 (368) 1.51 (.68) PBED2

TORQUE TESTERS

Electronic Torque Testers
These electronic torque testers can be placed on the wall in the factory
or on a bench to allow operators to test torque wrenches or power tools
without having to leave their station.
• Includes Track and Peak modes
• Can be used with nonimpacting power tools (joint rate simulators
required)
• Dual scale (English/N•m or English/dN•m)
• Reads bidirectional (clockwise and counterclockwise)
• Uses rechargeable Ni-Cad batteries (2 Ni-Cad 9 V)
• Charger included
• Integral transducer and sturdy housing allow mounting in virtually
any position
• Integral Transducer: Full bridge strain gauge, 350 ohms, 1,500 µE, 3
mV/V F.S., 7.5 V excitation
• Unique neck design allows operator to see display when testing long
torque wrenches
• Accuracy: ±0.5% of reading ±1 count in the least significant digit
(10–100% of full range) at 25 °C
• Display Accuracy: four digits, 9,999 counts
• Stability: +0.044% per °C
Stock No. Square Drive, inches Range English Range, N•m
QC1ETT10 1/4 10–100 in-oz 7.0–70.6
QC1ETT400 1/4 40–400 in-oz 28–280
QC1ETT50 1/4 5–50 in-lb 5.6–56
QC1ETT100 1/4 10–100 in-lb 11.3–113
QC2ETT250 3/8 25–250 in-lb 28–280
QC2ETT1000 3/8 100–1,000 in-lb 113–1,130
QC1ETT10 QC3ETT250 1/2 25–250 34–339
QC4ETT600 3/4 60–600 81–813
®
®
The certification of accuracy provided per ASME and ISO Standards is 10–100% of full scale.
