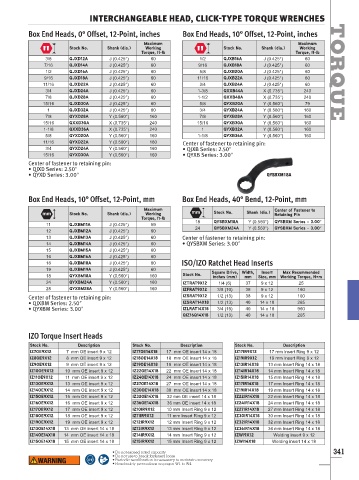

INTERCHANGEABLE HEAD, CLICK-TYPE TORQUE WRENCHES
Box End Heads, 0° Offset, 12-Point, inches Box End Heads, 10° Offset, 12-Point, inches

Maximum Maximum
Stock No. Shank (dia.) Working Stock No. Shank (dia.) Working
Torque, ft-lb Torque, ft-lb
3/8 QJXD12A J (0.425ʺ) 60 1/2 QJXB16A J (0.425ʺ) 60
7/16 QJXD14A J (0.425ʺ) 60 9/16 QJXB18A J (0.425ʺ) 60
1/2 QJXD16A J (0.425ʺ) 60 5/8 QJXB20A J (0.425ʺ) 60 TORQUE
9/16 QJXD18A J (0.425ʺ) 60 11/16 QJXB22A J (0.425ʺ) 60
11/16 QJXD22A J (0.425ʺ) 60 3/4 QJXB24A J (0.425ʺ) 60
3/4 QJXD24A J (0.425ʺ) 60 1-3/8 QXXB44A X (0.735ʺ) 240
7/8 QJXD28A J (0.425ʺ) 60 1-1/2 QXXB48A X (0.735ʺ) 240
15/16 QJXD30A J (0.425ʺ) 60 5/8 QYXB20A Y (0.560ʺ) 79
1 QJXD32A J (0.425ʺ) 60 3/4 QYXB24A Y (0.560ʺ) 160
7/8 QYXD28A Y (0.560ʺ) 160 7/8 QYXB28A Y (0.560ʺ) 160
15/16 QXXD30A X (0.735ʺ) 240 15/16 QYXB30A Y (0.560ʺ) 160
1-1/8 QXXD36A X (0.735ʺ) 240 1 QYXB32A Y (0.560ʺ) 160
5/8 QYXD20A Y (0.560ʺ) 160 1-1/8 QYXB36A Y (0.560ʺ) 160
11/16 QYXD22A Y (0.560ʺ) 160 Center of fastener to retaining pin:
3/4 QYXD24A Y (0.560ʺ) 160 • QJXB Series: 2.50ʺ
15/16 QYXD30A Y (0.560ʺ) 160 • QYXB Series: 3.00ʺ
Center of fastener to retaining pin:
• QJXD Series: 2.50ʺ
• QYXD Series: 3.00ʺ QYSBXM18A

Box End Heads, 10° Offset, 12-Point, mm Box End Heads, 40° Bend, 12-Point, mm
Maximum Center of Fastener to
Stock No. Shank (dia.) Working Stock No. Shank (dia.) Retaining Pin
Torque, ft-lb
11 QJXBM11A J (0.425ʺ) 59 18 QYSBXM18A Y (0.560ʺ) QYSBXM Series – 3.00ʺ
12 QJXBM12A J (0.425ʺ) 60 24 QYSBXM24A Y (0.560ʺ) QYSBXM Series – 3.00ʺ
13 QJXBM13A J (0.425ʺ) 60 Center of fastener to retaining pin:
14 QJXBM14A J (0.425ʺ) 60 • QYSBXM Series: 3.00ʺ
15 QJXBM15A J (0.425ʺ) 60
16 QJXBM16A J (0.425ʺ) 60
18 QJXBM18A J (0.425ʺ) 60 ISO/IZO Ratchet Head Inserts
19 QJXBM19A J (0.425ʺ) 60 Square Drive, Width, Insert Max Recommended
18 QYXBM18A Y (0.560ʺ) 160 Stock No. inches (mm) mm Size, mm Working Torque, N•m
24 QYXBM24A Y (0.560ʺ) 160 IZTRAT9X12 1/4 (6) 37 9 x 12 25
28 QYXBM28A Y (0.560ʺ) 160 IZFRAT9X12 3/8 (10) 38 9 x 12 160
Center of fastener to retaining pin: IZSRAT9X12 1/2 (13) 38 9 x 12 160
• QJXBM Series: 2.50ʺ IZSRAT14X18 1/2 (13) 40 14 x 18 265
• QYXBM Series: 3.00ʺ IZLRAT14X18 3/4 (19) 40 14 x 18 960
QIZ16Q14X18 1/2 (13) 40 14 x 18 265

IZO Torque Insert Heads
Stock No. Description Stock No. Description Stock No. Description
IZ7OE9X12 7 mm OE insert 9 x 12 IZ17OE14X18 17 mm OE insert 14 x 18 IZ17IR9X12 17 mm Insert Ring 9 x 12
IZ8OE9X12 8 mm OE insert 9 x 12 IZ18OE14X18 18 mm OE insert 14 x 18 IZ19IR9X12 19 mm Insert Ring 9 x 12
IZ9OE9X12 9 mm OE insert 9 x 12 IZ19OE14X18 19 mm OE insert 14 x 18 IZ13IR14X18 13 mm Insert Ring 14 x 18
IZ10OE9X12 10 mm OE insert 9 x 12 IZ22OE14X18 22 mm OE insert 14 x 18 IZ14IR14X18 14 mm Insert Ring 14 x 18
IZ11OE9X12 11 mm OE insert 9 x 12 IZ24OE14X18 24 mm OE insert 14 x 18 IZ15IR14X18 15 mm Insert Ring 14 x 18
IZ13OE9X12 13 mm OE insert 9 x 12 IZ27OE14X18 27 mm OE insert 14 x 18 IZ17IR14X18 17 mm Insert Ring 14 x 18
IZ14OE9X12 14 mm OE insert 9 x 12 IZ30OE14X18 30 mm OE insert 14 x 18 IZ19IR14X18 19 mm Insert Ring 14 x 18
IZ15OE9X12 15 mm OE insert 9 x 12 IZ32OE14X18 32 mm OE insert 14 x 18 IZ22IR14X18 22 mm Insert Ring 14 x 18
IZ16OE9X12 16 mm OE insert 9 x 12 IZ36OE14X18 36 mm OE insert 14 x 18 IZ24IR14X18 24 mm Insert Ring 14 x 18
IZ17OE9X12 17 mm OE insert 9 x 12 IZ10IR9X12 10 mm Insert Ring 9 x 12 IZ27IR14X18 27 mm Insert Ring 14 x 18
IZ18OE9X12 18 mm OE insert 9 x 12 IZ11IR9X12 11 mm Insert Ring 9 x 12 IZ30IR14X18 30 mm Insert Ring 14 x 18
IZ19OE9X12 19 mm OE insert 9 x 12 IZ12IR9X12 12 mm Insert Ring 9 x 12 IZ32IR14X18 32 mm Insert Ring 14 x 18
IZ13OE14X18 13 mm OE insert 14 x 18 IZ13IR9X12 13 mm Insert Ring 9 x 12 IZ36IR14X18 36 mm Insert Ring 14 x 18
IZ14OE14X18 14 mm OE insert 14 x 18 IZ14IR9X12 14 mm Insert Ring 9 x 12 IZWI9X12 Welding insert 9 x 12
IZ15OE14X18 15 mm OE insert 14 x 18 IZ15IR9X12 15 mm Insert Ring 9 x 12 IZWI14X18 Welding insert 14 x 18
• Do not exceed rated capacity 341
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
