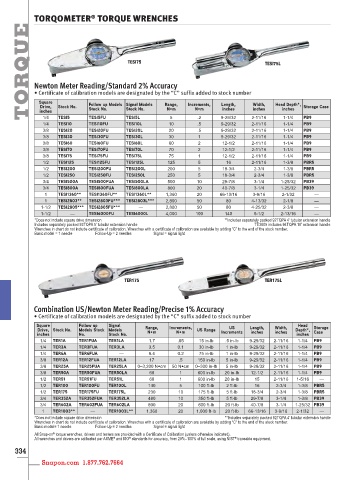

TORQOMETER TORQUE WRENCHES
TORQUE Newton Meter Reading/Standard 2% Accuracy TESI75L

TESI75

• Certificate of calibration models are designated by the “C” suffix added to stock number
Square
Width,
Length,
Drive,
N•m
Stock No.
N•m
Stock No.
inches
inches
inches
inches
1/4
1-1/4
.2
5
TESI5L
TESI5FU
PB9
TESI5
1/4 Stock No. Follow up Models Signal Models Range, Increments, 9-29/32 2-11/16 Head Depth*, Storage Case
.5
9-29/32
2-11/16
10
1-1/4
PB9
TESI10FU
TESI10L
TESI10
3/8 TESI20 TESI20FU TESI20L 20 .5 9-29/32 2-11/16 1-1/4 PB9
3/8 TESI30 TESI30FU TESI30L 30 1 9-29/32 2-11/16 1-1/4 PB9
3/8 TESI60 TESI60FU TESI60L 60 2 12-1/2 2-11/16 1-1/4 PB9
3/8 TESI70 TESI70FU TESI70L 70 2 12-1/2 2-11/16 1-1/4 PB9
3/8 TESI75 TESI75FU TESI75L 75 1 12-1/2 2-11/16 1-1/4 PB9
1/2 TESI125 TESI125FU TESI125L 125 5 16 2-11/16 1-3/8 PBR5
1/2 TESI200 TESI200FU TESI200L 200 5 18-3/4 2-3/4 1-3/8 PBR5
1/2 TESI250 TESI250FU TESI250L 250 5 18-3/4 2-3/4 1-3/8 PBR5
3/4 TESI500A TESI500FUA TESI500LA 500 10 29-7/8 3-1/4 1-25/32 PB39
3/4 TESI800A TESI800FUA TESI800LA 800 20 40-7/8 3-1/4 1-25/32 PB39
1 TESI1360** TESI1360FU** TESI1360L** 1,360 20 66-13/16 3-9/16 2-1/32 —
1 TESI2803** TESI2803FU*** TESI2803L*** 2,800 50 80 4-13/32 2-1/8 —
1-1/2 TESI2805*** TESI2805FU*** — 2,800 50 80 4-25/32 2-3/8 —
1-1/2 — TESI4000FU TESI4000L 4,000 100 140 5-1/2 2-13/16 —
*Does not include square drive dimension **Includes separately packed 92TQPA 4' tubular extension handle
Includes separately packed 93TQPA 5' tubular extension handle TE3005 includes 94TQPA 10' extension handle
Wrenches in chart do not include certificate of calibration. Wrenches with a certificate of calibration are available by adding “C” to the end of the stock number.
Basic model = 1 needle Follow-Up = 2 needles Signal = signal light
TER175 TER175L
Combination US/Newton Meter Reading/Precise 1% Accuracy
• Certificate of calibration models are designated by the “C” suffix added to stock number
Square Follow up Signal Range, Increments, US Length, Width, Head Storage
Drive, Stock No. Models Stock Models N•m N•m US Range Increments inches inches Depth*, Case
inches No. Stock No. inches
1/4 TER1A TER1FUA TER1LA 1.7 .05 15 in-lb .5 in-lb 9-29/32 2-11/16 1-1/4 PB9
1/4 TER3A TER3FUA TER3LA 3.5 0.1 30 in-lb 1 in-lb 9-29/32 2-11/16 1-1/4 PB9
1/4 TER6A TER6FUA — 8.4 0.2 75 in-lb 1 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TER12A TER12FUA TER12LA 17 .5 150 in-lb 5 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TER25A TER25FUA TER25LA 0–3,200 N•cm 50 N•cm 0–300 in-lb 5 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TER50A TER50FUA TER50LA 60 1 600 in-lb 20 in-lb 12-1/2 2-11/16 1-1/4 PB9
1/2 TER51 TER51FU TER51L 60 1 600 in-lb 20 in-lb 15 2-11/16 1-5/16 —
1/2 TER100 TER100FU TER100L 140 5 100 ft-lb 2 ft-lb 16 2-3/4 1-3/8 PBR5
1/2 TER175 TER175FU TER175L 230 10 175 ft-lb 5 ft-lb 18-3/4 2-3/4 1-3/8 PBR5
3/4 TER352A TER352FUA TER352LA 480 10 350 ft-lb 5 ft-lb 29-7/8 3-1/4 1-3/8 PB39
3/4 TER602A TER602FUA TER602LA 800 20 600 ft-lb 20 ft-lb 40-7/8 3-1/4 1-25/32 PB39
1 TER1003** — TER1003L** 1,360 20 1,000 ft-lb 20 ft-lb 66-13/16 3-9/16 2-1/32 —
*Does not include square drive dimension **Includes separately packed 92TQPA 4' tubular extension handle
Wrenches in chart do not include certificate of calibration. Wrenches with a certificate of calibration are available by adding “C” to the end of the stock number.
Basic model= 1 needle Follow-Up = 2 needles Signal = signal light
®
All Snap-on torque wrenches, drivers and testers are provided with a Certificate of Calibration (unless otherwise indicated).
®
®
®
All wrenches and drivers are calibrated per ASME and ISO standards for accuracy, from 20%–100% of full scale, using NIST traceable equipment.
