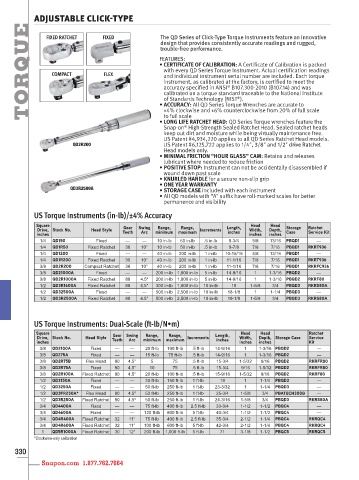

ADJUSTABLE CLICK-TYPE The QD Series of Click-Type Torque Instruments feature an innovative
TORQUE COMPACT FLEX FEATURES: ®
FIXED RATCHET
FIXED
design that provides consistently accurate readings and rugged,
trouble-free performance.

• CERTIFICATE OF CALIBRATION: A Certificate of Calibration is packed
with every QD Series Torque Instrument. Actual certification readings
and individual instrument serial number are included. Each torque
instrument, as calibrated at the factory, is certified to meet the
accuracy specified in ANSI B107.300-2010 (B107.14) and was
calibrated on a torque standard traceable to the National Institute
of Standards Technology (NIST ).
®
• ACCURACY: All QD Series Torque Wrenches are accurate to
±4% clockwise and ±6% counterclockwise from 20% of full scale
to full scale
• LONG LIFE RATCHET HEAD: QD Series Torque wrenches feature the
Snap-on High-Strength Sealed Ratchet Head. Sealed ratchet heads
®
keep out dirt and moisture while being virtually maintenance free.
US Patent #4,934,220 applies to all QD Series Ratchet Head models.
QD2R200 US Patent #6,125,722 applies to 1/4ʺ, 3/8ʺ and 1/2ʺ drive Ratchet
Head models only.
• MINIMAL FRICTION “HOUR GLASS” CAM: Retains and releases
lubricant where needed to reduce friction
• POSITIVE STOP: Instrument can not be accidentally disassembled if
wound down past scale
• KNURLED HANDLE for a secure non-slip grip
• ONE YEAR WARRANTY
QD3R2500A
• STORAGE CASE included with each instrument
• All QD models with “A" suffix have roll-marked scales for better
permanence and visibility
US Torque Instruments (in-lb)/±4% Accuracy
Square Head Head
Drive, Stock No. Head Style Gear Swing Range, Range, Increments Length, Width, Depth, Storage Ratchet
inches Teeth Arc minimum maximum inches inches inches Case Service Kit
1/4 QD150 Fixed — — 10 in-lb 50 in-lb .5 in-lb 9-3/4 5/8 13/16 PBQD1 —
1/4 QD1R50 Fixed Ratchet 36 10° 10 in-lb 50 in-lb .5 in-lb 9-7/8 7/8 7/16 PBQD1 RKRT936
1/4 QD1200 Fixed — — 40 in-lb 200 in-lb 1 in-lb 10-15/16 5/8 13/16 PBQD1 —
1/4 QD1R200 Fixed Ratchet 36 10° 40 in-lb 200 in-lb 1 in-lb 11-1/16 7/8 7/16 PBQD1 RKRT936
3/8 QD2R200 Compact Ratchet 36 10° 40 in-lb 200 in-lb 1 in-lb 11-1/16 7/8 7/16 PBQD1 RKRFC936
3/8 QD21000A Fixed — — 200 in-lb 1,000 in-lb 5 in-lb 14-9/16 1 1-3/16 PBQD2 —
3/8 QD2R1000A Fixed Ratchet 80 4.5º 200 in-lb 1,000 in-lb 5 in-lb 14-9/16 1 1-3/16 PBQD2 RKRF80
1/2 QD3R1600A Fixed Ratchet 80 4.5° 300 in-lb 1,600 in-lb 10 in-lb 19 1-5/8 3/4 PBQD3 RKRS80A
1/2 QD32500A Fixed — — 500 in-lb 2,500 in-lb 10 in-lb 18-1/8 1 1-1/4 PBQD3 —
1/2 QD3R2500A Fixed Ratchet 80 4.5° 500 in-lb 2,500 in-lb 10 in-lb 19-1/8 1-5/8 3/4 PBQD3 RKRS80A

US Torque Instruments: Dual-Scale (ft-lb/N•m)
Square Head Head Ratchet
Drive, Stock No. Head Style Gear Swing Range, Range, Increments Length, Width, Depth, Storage Case Service
inches Teeth Arc minimum maximum inches inches inches Kit
3/8 QD2100A Fixed — — 20 ft-lb 100 ft-lb .5 ft-lb 14-9/16 1 1-3/16 PBQD2 —
3/8 QD275A Fixed — — 15 ft-lb 75 ft-lb .5 ft-lb 14-9/16 1 1-3/16 PBQD2 —
3/8 QD2R75B Flex Head 80 4.5° 5 75 .5 ft-lb 15-3/4 1-5/32 9/16 PBQD2 RKRFR80
3/8 QD2R75A Fixed 80 4.5° 10 75 .5 ft-lb 15-3/4 9/16 1-5/32 PBQD2 RKRFR80
3/8 QD2R100A Fixed Ratchet 80 4.5° 20 ft-lb 100 ft-lb .5 ft-lb 15-9/16 1-5/32 9/16 PBQD2 RKRF80
1/2 QD3150A Fixed — — 30 ft-lb 150 ft-lb 1 ft-lb 18 1 1-1/4 PBQD3 —
1/2 QD3250A Fixed — — 50 ft-lb 250 ft-lb 1 ft-lb 23-3/32 1 1-1/4 PBQD3 —
1/2 QD3FR250A* Flex Head 80 4.5º 50 ft-lb 250 ft-lb 1 ft-lb 25-3/4 1-5/8 3/4 PBATECH300B —
1/2 QD3R250A Fixed Ratchet 80 4.5º 50 ft-lb 250 ft-lb 1 ft-lb 24-3/16 1-5/8 3/4 PBQD3 RKRS80A
3/4 QD4400A Fixed — — 75 ft-lb 400 ft-lb 2.5 ft-lb 33-3/4 1-1/2 1-1/2 PBQC4 —
3/4 QD4600A Fixed — — 120 ft-lb 600 ft-lb 5 ft-lb 40-3/4 1-1/2 1-1/2 PBQC4 —
3/4 QD4R400A Fixed Ratchet 32 11° 75 ft-lb 400 ft-lb 2.5 ft-lb 35-3/4 2-1/2 1-1/4 PBQC4 RKRQC4
3/4 QD4R600A Fixed Ratchet 32 11° 100 ft-lb 600 ft-lb 5 ft-lb 42-3/4 2-1/2 1-1/4 PBQC4 RKRQC4
1 QD5R1000A Fixed Ratchet 30 12° 200 ft-lb 1,000 ft-lb 5 ft-lb 71 3-1/8 1-1/2 PBQC5 RKRQC5
*Clockwise-only calibration
