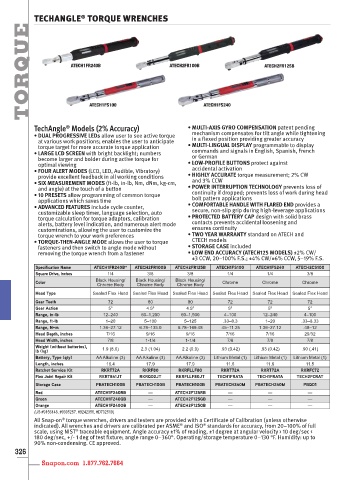

TECHANGLE TORQUE WRENCHES
TORQUE ATECH1FR240B ATECH2FR100B ATECH2FR125B

ATECH1FS240
ATECH1FS100

®
TechAngle Models (2% Accuracy) • MULTI-AXIS GYRO COMPENSATION patent pending
• DUAL PROGRESSIVE LEDs allow user to see active torque mechanism compensates for tilt angle while tightening
at various work positions; enables the user to anticipate in a flexed position providing greater accuracy
torque target for more accurate torque application • MULTI-LINGUAL DISPLAY programmable to display
• LARGE LCD SCREEN with bright backlight; numbers commands and signals in English, Spanish, French
become larger and bolder during active torque for or German
optimal viewing • LOW-PROFILE BUTTONS protect against
• FOUR ALERT MODES (LCD, LED, Audible, Vibratory) accidental activation
provide excellent feedback in all working conditions • HIGHLY ACCURATE torque measurement; 2% CW
• SIX MEASUREMENT MODES (ft-lb, in-lb, Nm, dNm, kg-cm, and 3% CCW
and angle) at the touch of a button • POWER INTERRUPTION TECHNOLOGY prevents loss of
• 10 PRESETS allow programming of common torque continuity if dropped; prevents loss of work during head
applications which saves time bolt pattern applications
• ADVANCED FEATURES include cycle counter, • COMFORTABLE HANDLE WITH FLARED END provides a
customizable sleep timer, language selection, auto secure, non-slip grip during high-leverage applications
torque calculation for torque adaptors, calibration • PROTECTED BATTERY CAP design with solid brass
alerts, battery level indication, and numerous alert mode contacts prevents accidental loosening and
customizations, allowing the user to customize the ensures continuity
torque wrench to your work preferences • TWO YEAR WARRANTY standard on ATECH and
• TORQUE-THEN-ANGLE MODE allows the user to torque CTECH models
fasteners and then switch to angle mode without • STORAGE CASE included
removing the torque wrench from a fastener • LOW END ACCURACY (ATECH125 MODELS) ±2% CW/
±3 CCW, 20–100% F.S.; ±4% CW/±6% CCW, 5–19% F.S.
Specification Name ATECH1FR240B* ATECH2FR100B ATECH2FR125B ATECH1FS100 ATECH1FS240 ATECH2CS100
Square Drive, inches 1/4 3/8 3/8 1/4 1/4 3/8
Black Housing/ Black Housing/ Black Housing/
Color Chrome Chrome Chrome
Chrome Body Chrome Body Chrome Body
Head Type Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head
Gear Teeth 72 80 80 72 72 72
Gear Action 5° 4.5º 4.5º 5º 5º 5°
Range, in-lb 12–240 60–1,200 60–1,500 4–100 12–240 4–100
Range, ft-lb 1–20 5–100 5–125 .33–8.3 1–20 .33–8.33
Range, N•m 1.36–27.12 6.78–135.0 6.78–169.48 .45–11.25 1.36–27.12 .48–12
Head Depth, inches 7/16 9/16 9/16 7/16 7/16 29/32
Head Width, inches 7/8 1-1/4 1-1/4 7/8 7/8 7/8
Weight (without batteries),
lb (kg) 1.9 (8.6) 2.3 (1.04) 2.2 (0.9) .93 (0.42) .93 (0.42) .90 (.41)
Battery, Type (qty) AA Alkaline (3) AA Alkaline (3) AA Alkaline (3) Lithium Metal (1) Lithium Metal (1) Lithium Metal (1)
Length, inches 16.4 17.9 17.9 11.6 11.6 11.5
Ratchet Service Kit RKRT72A RKRF80 RKRFLLF80 RKRT72A RKRT72A RKRFC72
Flex Joint Repair Kit RKRT841JT RKRQD2JT RKRFLLF80JT TECH1FRATA TECH1FRATA TECH2FCRAT
Storage Case PBATECH100B PBATECH100B PBATECH100B PBATECH240M PBATECH240M PBQD1
Red ATECH1F240RB — ATECH2F125RB — — —
Green ATECH1F240GB — ATECH2F125GB — — —
Orange ATECH1F240OB — ATECH2F125OB — — —
(US #9156148, #9395257, #9242356, #D702519)
All Snap-on torque wrenches, drivers and testers are provided with a Certificate of Calibration (unless otherwise
®
indicated). All wrenches and drivers are calibrated per ASME and ISO standards for accuracy, from 20–100% of full
®
®
®
scale, using NIST traceable equipment. Angle accuracy ±1% of reading, ±1 degree at angular velocity > 10 deg/sec <
180 deg/sec, +/- 1 deg of test fixture; angle range 0–360°. Operating/storage temperature 0–130 °F. Humidity: up to
90% non-condensing. CE approved.
