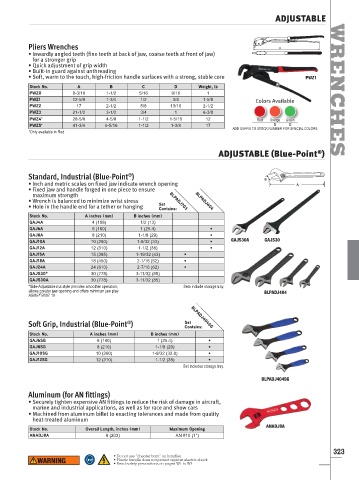

ADJUSTABLE

Pliers Wrenches
• Inwardly angled teeth (fine teeth at back of jaw, coarse teeth at front of jaw)
for a stronger grip
• Quick adjustment of grip width
• Built-in guard against unthreading
• Soft, warm to the touch, high-friction handle surfaces with a strong, stable core PWZ1
Stock No. A B C D Weight, lb
PWZ0 8-3/16 1-1/2 5/16 9/16 1 WRENCHES
PWZ1 12-5/8 1-3/4 1/2 3/4 1-5/8 Colors Available
PWZ2 17 2-1/2 5/8 13/16 2-1/2
PWZ3 21-1/2 3-1/2 3/4 1 6-3/8
PWZ4* 28-5/8 4-5/8 1-1/2 1-5/16 12 Red Orange Green
PWZ5* 41-3/4 6-5/16 1-1/2 1-3/8 17 O G
*Only available in Red ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

ADJUSTABLE (Blue-Point )
®

Standard, Industrial (Blue-Point )
®
• Inch and metric scales on fixed jaw indicate wrench opening
• Fixed jaw and handle forged in one piece to ensure
maximum strength
• Wrench is balanced to minimize wrist stress Set BLPADJ703 BLPADJ404
• Hole in the handle end for a tether or hanging Contains:
Stock No. A inches (mm) B inches (mm)
GAJ4A 4 (108) 1/2 (13)
GAJ6A 6 (160) 1 (25.4) •
GAJ8A 8 (210) 1-1/8 (29) •
GAJ10A 10 (260) 1-9/32 (33) • GAJS30A GAJS30
GAJ12A 12 (310) 1-1/2 (38) •
GAJ15A 15 (385) 1-19/32 (43) •
GAJ18A 18 (450) 2-1/16 (52) •
GAJ24A 24 (610) 2-7/16 (62) •
GAJS30* 30 (778) 3-11/32 (85)
GAJS30A 30 (778) 3-11/32 (85)
*Side-Adjustable nut style provides smoother operation, Sets include storage tray.
allows greater jaw opening and offers minimum jaw play BLPADJ404
®
ASME B107.10

Soft Grip, Industrial (Blue-Point ) Set BLPADJ404SG
®
Contains:
Stock No. A inches (mm) B inches (mm)
GAJ6SG 6 (160) 1 (25.4) •
GAJ8SG 8 (210) 1-1/8 (29) •
GAJ10SG 10 (260) 1-9/32 (32.8) •
GAJ12SG 12 (310) 1-1/2 (38) •
Set includes storage tray.

BLPADJ404SG

Aluminum (for AN fittings)
• Securely tighten expensive AN fittings to reduce the risk of damage in aircraft,
marine and industrial applications, as well as for race and show cars
• Machined from aluminum billet to exacting tolerances and made from quality
heat-treated aluminum
ANADJ8A
Stock No. Overall Length, inches (mm) Maximum Opening
ANADJ8A 8 (203) AN #10 (1ʺ)

323
• Do not use “cheater bars” on handles
• Plastic handle does not protect against electric shock
• Read safety precautions on pages W1 to W4
