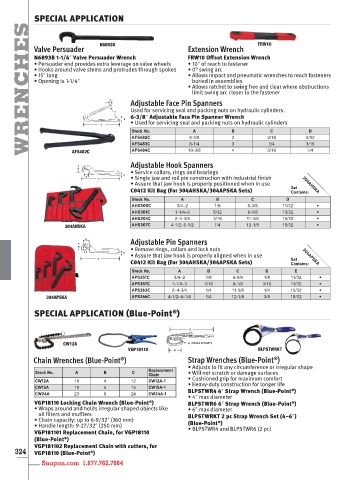

SPECIAL APPLICATION
WRENCHES

N6893B FRW10
Valve Persuader Extension Wrench
N6893B 1-1/4ʺ Valve Persuader Wrench FRW10 Offset Extension Wrench
• Persuader end provides extra leverage on valve wheels • 10ʺ of reach to fastener
• Hooks around valve stems and protrudes through spokes • 0° swing arc
• 15ʺ long • Allows impact and pneumatic wrenches to reach fasteners
• Opening is 1-1/4ʺ buried in assemblies
• Allows ratchet to swing free and clear where obstructions
limit swing arc closer to the fastener
Adjustable Face Pin Spanners
Used for servicing seal and packing nuts on hydraulic cylinders.
6-3/8ʺ Adjustable Face Pin Spanner Wrench
• Used for servicing seal and packing nuts on hydraulic cylinders
Stock No. A B C D
AFS482C 6-3/8 2 3/16 5/32
AFS483C 8-1/4 3 1/4 3/16
AFS482C AFS484C 10-3/8 4 5/16 1/4
Adjustable Hook Spanners
• Service collars, rings and bearings
• Single jaw and roll pin construction with industrial finish
• Assure that jaw hook is properly positioned when in use 304AHSKA
Set
C0412 Kit Bag (For 304AHSKA/304APSKA Sets) Contains:
Stock No. A B C D
AHS300C 3/4–2 1/8 6-3/8 11/32 •
AHS301C 1-1/4–3 5/32 8-1/8 13/32 •
AHS304C 2–4-3/4 3/16 11-3/8 15/32 •
304AHSKA AHS307C 4-1/2–6-1/2 1/4 12-1/8 15/32 •
Adjustable Pin Spanners
• Remove rings, collars and lock nuts
• Assure that jaw hook is properly aligned when in use 304APSKA
Set
C0412 Kit Bag (For 304AHSKA/304APSKA Sets) Contains:
Stock No. A B C D E
APS351C 3/4–2 1/8 6-3/8 1/8 11/32 •
APS357C 1-1/4–3 3/16 8-1/8 3/16 11/32 •
APS363C 2–4-3/4 1/4 11-3/8 1/4 15/32 •
304APSKA APS366C 4-1/2–6-1/4 1/4 12-1/8 3/8 15/32 •
SPECIAL APPLICATION (Blue-Point )
®

CW12A
VGP18110 BLPSTWRKT
®
Chain Wrenches (Blue-Point ) Strap Wrenches (Blue-Point )
®
• Adjusts to fit any circumference or irregular shape
Replacement
Stock No. A B C • Will not scratch or damage surfaces
Chain
CW12A 16 4 12 CW12A-1 • Cushioned grip for maximum comfort
CW15A 19 5 15 CW15A-1 • Heavy-duty construction for longer life ®
CW24A 23 6 24 CW24A-1 BLPSTWR4 4ʺ Strap Wrench (Blue-Point )
• 4ʺ max diameter
®
VGP18110 Locking Chain Wrench (Blue-Point ) BLPSTWR6 6ʺ Strap Wrench (Blue-Point )
®
• Wraps around and holds irregular shaped objects like • 6ʺ max diameter
oil filters and mufflers BLPSTWRKT 2 pc Strap Wrench Set (4–6ʺ)
• Chain capacity: up to 6-9/32ʺ (160 mm) ®
• Handle length: 9-27/32ʺ (250 mm) (Blue-Point )
VGP181101 Replacement Chain, for VGP18110 • BLPSTWR4 and BLPSTWR6 (2 pc)
(Blue-Point )
®
VGP181102 Replacement Chain with cutters, for
324 VGP18110 (Blue-Point )
®
