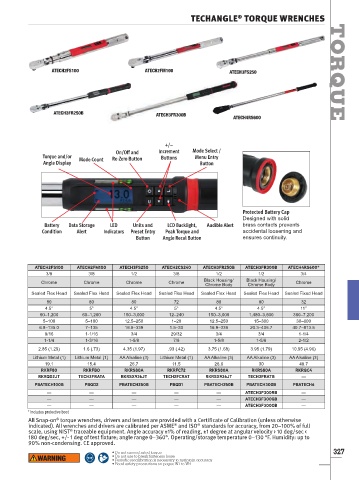

TECHANGLE TORQUE WRENCHES

ATECH2FS100 ATECH2FM100 ATECH3FS250 TORQUE

ATECH3FR250B
ATECH3FR300B
ATECH4RS600

+/–
On/Off and Increment Mode Select /
Torque and/or Mode Count Re-Zero Button Buttons Menu Entry
Angle Display Button

Protected Battery Cap
Designed with solid
Battery Data Storage LED Units and LCD Backlight, Audible Alert brass contacts prevents
Condition Alert Indicators Preset Entry Peak Torque and accidental loosening and
Button Angle Recal Button ensures continuity.

ATECH2FS100 ATECH2FM100 ATECH3FS250 ATECH2CS240 ATECH3FR250B ATECH3FR300B ATECH4RS600*
3/8 3/8 1/2 3/8 1/2 1/2 3/4
Black Housing/ Black Housing/
Chrome Chrome Chrome Chrome Chrome
Chrome Body Chrome Body
Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Flex Head Sealed Fixed Head
80 80 80 72 80 80 32
4.5° 5° 4.5° 5° 4.5° 4.5° 11°
60–1,200 60–1,200 150–3,000 12–240 150–3,000 1,480–3,600 360–7,200
5–100 5–100 12.5–250 1–20 12.5–250 15–300 30–600
6.8–135.0 7–135 16.9–339 1.5–30 16.9–339 20.3–406.7 40.7–813.5
9/16 1-1/16 3/4 29/32 3/4 3/4 1-1/4
1-1/4 1-3/16 1-5/8 7/8 1-5/8 1-5/8 2-1/2
2.85 (1.29) 1.6 (.73) 4.35 (1.97) .93 (.42) 3.75 (1.68) 3.95 (1.79) 10.95 (4.96)
Lithium Metal (1) Lithium Metal (1) AA Alkaline (3) Lithium Metal (1) AA Alkaline (3) AA Alkaline (3) AA Alkaline (3)
19.1 15.4 26.7 11.5 26.6 30 48.7
RKRF80 RKRFBO RKRS80A RKRFC72 RKRS80A RKRS80A RKRQC4
RKRQD2JT TECH2FRATA RKRSX936JT TECH2FCRAT RKRSX936JT TECH3FRATB —
PBATECH100B PBQD2 PBATECH250B PBQD1 PBATECH250B PBATECH300B PBATECH4
— — — — — ATECH3F300RB —
— — — — — ATECH3F300GB —
— — — — — ATECH3F300OB —
* Includes protective boot
All Snap-on torque wrenches, drivers and testers are provided with a Certificate of Calibration (unless otherwise
®
®
®
indicated). All wrenches and drivers are calibrated per ASME and ISO standards for accuracy, from 20–100% of full
scale, using NIST traceable equipment. Angle accuracy ±1% of reading, ±1 degree at angular velocity > 10 deg/sec <
®
180 deg/sec, +/- 1 deg of test fixture; angle range 0–360°. Operating/storage temperature 0–130 °F. Humidity: up to
90% non-condensing. CE approved.
• Do not exceed rated torque 327
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
