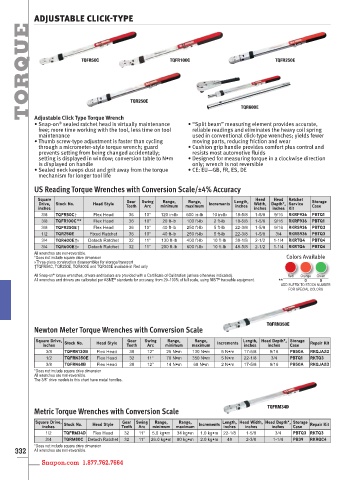

ADJUSTABLE CLICK-TYPE
TORQUE TQFR50C TQFR100C TQFR250E

TQR250E
TQR600E
Adjustable Click Type Torque Wrench
®
• Snap-on sealed ratchet head is virtually maintenance • “Split beam” measuring element provides accurate,
free; more time working with the tool, less time on tool reliable readings and eliminates the heavy coil spring
maintenance used in conventional click-type wrenches; yields fewer
• Thumb screw-type adjustment is faster than cycling moving parts, reducing friction and wear
through a micrometer-style torque wrench; guard • Cushion grip handle provides comfort plus control and
prevents setting from being changed accidentally; resists most automotive fluids
setting is displayed in window; conversion table to N•m • Designed for measuring torque in a clockwise direction
is displayed on handle only; wrench is not reversible
• Sealed neck keeps dust and grit away from the torque • CE: EU—GB, FR, ES, DE
mechanism for longer tool life
US Reading Torque Wrenches with Conversion Scale/±4% Accuracy
Square Head Head Ratchet
Drive, Stock No. Head Style Gear Swing Range, Range, Increments Length, Width, Depth*, Service Storage
inches Teeth Arc minimum maximum inches inches inches Kit Case
3/8 TQFR50C † Flex Head 36 10° 120 in-lb 600 in-lb 10 in-lb 18-5/8 1-5/8 9/16 RKRF936 PBTQ1
3/8 TQFR100C ** Flex Head 36 10° 20 ft-lb 100 ft-lb 2 ft-lb 18-5/8 1-5/8 9/16 RKRF936 PBTQ1
3/8 TQFR250E † Flex Head 36 10° 40 ft-lb 250 ft-lb 5 ft-lb 22-3/8 1-5/8 9/16 RKRS936 PBTQ3
1/2 TQR250E Fixed Ratchet 36 10° 40 ft-lb 250 ft-lb 5 ft-lb 22-3/8 1-5/8 3/4 RKRS936 PBTQ3
3/4 TQR400E †» Detach Ratchet 32 11° 130 ft-lb 400 ft-lb 10 ft-lb 38-1/8 2-1/2 1-1/4 RKRTQ4 PBTQ4
3/4 TQR600E †» Detach Ratchet 32 11° 200 ft-lb 600 ft-lb 10 ft-lb 48-5/8 2-1/2 1-1/4 RKRTQ4 PBTQ4
All wrenches are non-reversible.
*Does not include square drive dimension Colors Available
»Three-piece construction disassembles for storage/transport
†TQFR50C, TQR250E, TQR400E and TQR600E available in Red only
®
All Snap-on torque wrenches, drivers and testers are provided with a Certificate of Calibration (unless otherwise indicated). Red Orange Green
All wrenches and drivers are calibrated per ASME standards for accuracy, from 20–100% of full scale, using NIST traceable equipment. ** O G
®
®
ADD SUFFIX TO STOCK NUMBER
FOR SPECIAL COLORS

TQFRN350E
Newton Meter Torque Wrenches with Conversion Scale
Square Drive, Gear Swing Range, Range, Length, Head Depth*, Storage
inches Stock No. Head Style Teeth Arc minimum maximum Increments inches inches Case Repair Kit
3/8 TQFRN130B Flex Head 30 12° 25 N•m 130 N•m 5 N•m 17-5/8 9/16 PB50A RKQJA2D
1/2 TQFRN350E Flex Head 32 11° 70 N•m 350 N•m 5 N•m 22-1/8 3/4 PBTQ1 RKTQ3
3/8 TQFRN68B Flex Head 30 12° 14 N•m 68 N•m 2 N•m 17-5/8 9/16 PB50A RKQJA2D
*Does not include square drive dimension
All wrenches are non-reversible.
The 3/8” drive models in this chart have metal handles.

TQFRM34D
Metric Torque Wrenches with Conversion Scale
Square Drive, Gear Swing Range, Range, Length, Head Width, Head Depth*, Storage
inches Stock No. Head Style Teeth Arc minimum maximum Increments inches inches inches Case Repair Kit
1/2 TQFRM34D Flex Head 32 11° 5.0 kg•m 34 kg•m 1.0 kg•m 22-1/8 1-5/8 3/4 PBTQ3 RKTQ3
3/4 TQRM80C Detach Ratchet 32 11° 26.0 kg•m 80 kg•m 2.0 kg•m 48 2-3/8 1-1/4 PB39 RKRQC4
*Does not include square drive dimension
332 All wrenches are non-reversible.
