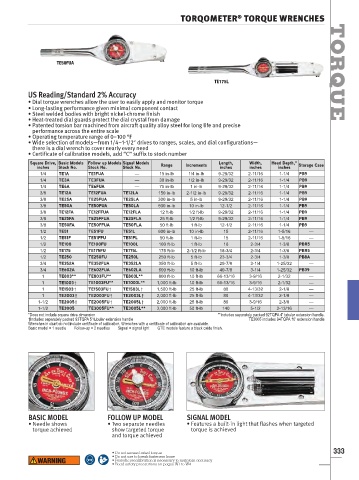

TORQOMETER TORQUE WRENCHES

TE50FUA

TE175L TORQUE
US Reading/Standard 2% Accuracy
• Dial torque wrenches allow the user to easily apply and monitor torque
• Long-lasting performance given minimal component contact
• Steel welded bodies with bright nickel-chrome finish
• Heat-treated dial guards protect the dial crystal from damage
• Patented torsion bar machined from aircraft quality alloy steel for long life and precise
performance across the entire scale
• Operating temperature range of 0–100 °F
• Wide selection of models—from 1/4–1-1/2ʺ drives to ranges, scales, and dial configurations—
there is a dial wrench to cover nearly every need
• Certificate of calibration models, add “C” suffix to stock number
Square Drive, Basic Models Follow up Models Signal Models Range Increments Length, Width, Head Depth,* Storage Case
inches Stock No. Stock No. Stock No. inches inches inches
1/4 TE1A TE1FUA — 15 in-lb 1/4 in-lb 9-29/32 2-11/16 1-1/4 PB9
1/4 TE3A TE3FUA — 30 in-lb 1/2 in-lb 9-29/32 2-11/16 1-1/4 PB9
1/4 TE6A TE6FUA — 75 in-lb 1 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TE12A TE12FUA TE12LA 150 in-lb 2-1/2 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TE25A TE25FUA TE25LA 300 in-lb 5 in-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TE50A TE50FUA TE50LA 600 in-lb 10 in-lb 12-1/2 2-11/16 1-1/4 PB9
3/8 TE12FA TE12FFUA TE12FLA 12 ft-lb 1/2 ft-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TE25FA TE25FFUA TE25FLA 25 ft-lb 1/2 ft-lb 9-29/32 2-11/16 1-1/4 PB9
3/8 TE50FA TE50FFUA TE50FLA 50 ft-lb 1 ft-lb 12-1/2 2-11/16 1-1/4 PB9
1/2 TE51 TE51FU TE51L 600 in-lb 10 in-lb 15 2-11/16 1-5/16 —
1/2 TE51F TE51FFU TE51FL 50 ft-lb 1 ft-lb 15 2-11/16 1-5/16 —
1/2 TE100 TE100FU TE100L 100 ft-lb 1 ft-lb 16 2-3/4 1-3/8 PBR5
1/2 TE175 TE175FU TE175L 175 ft-lb 2-1/2 ft-lb 18-3/4 2-3/4 1-3/8 PBR5
1/2 TE250 TE250FU TE250L 250 ft-lb 5 ft-lb 23-3/4 2-3/4 1-3/8 PB8A
3/4 TE352A TE352FUA TE352LA 350 ft-lb 5 ft-lb 29-7/8 3-1/4 1-25/32 —
3/4 TE602A TE602FUA TE602LA 600 ft-lb 10 ft-lb 40-7/8 3-1/4 1-25/32 PB39
1 TE803** TE803FU** TE803L** 800 ft-lb 10 ft-lb 66-13/16 3-9/16 2-1/32 —
1 TE1003 † TE1003FU** TE1003L** 1,000 ft-lb 10 ft-lb 66-13/16 3-9/16 2-1/32 —
1 TE1503 † TE1503FU † TE1503L † 1,500 ft-lb 25 ft-lb 80 4-13/32 2-1/8 —
1 TE2003 † TE2003FU † TE2003L † 2,000 ft-lb 25 ft-lb 80 4-13/32 2-1/8 —
1-1/2 TE2005 † TE2005FU † TE2005L † 2,000 ft-lb 25 ft-lb 80 3-9/16 2-3/8 —
1-1/2 TE3005 TE3005FU** TE3005L** 3,000 ft-lb 50 ft-lb 140 5-1/2 2-13/16 —
*Does not include square drive dimension **Includes separately packed 92TQPA 4' tubular extension handle.
†Includes separately packed 93TQPA 5' tubular extension handle TE3005 includes 94TQPA 10' extension handle
Wrenches in chart do not include certificate of calibration. Wrenches with a certificate of calibration are available.
Basic model = 1 needle Follow-up = 2 needles Signal = signal light GTE models feature a black oxide finish.

BASIC MODEL FOLLOW UP MODEL SIGNAL MODEL
• Needle shows • Two separate needles • Features a built-in light that flashes when targeted
torque achieved show targeted torque torque is achieved
and torque achieved

333
• Do not exceed rated torque
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
