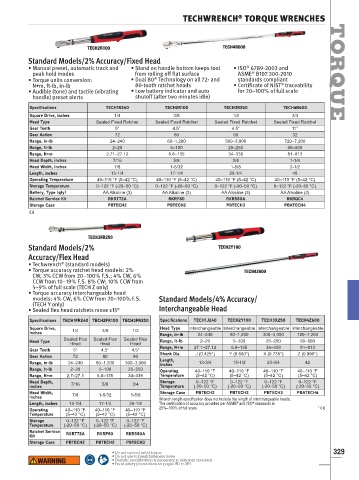

TECHWRENCH TORQUE WRENCHES

TECH2R100 TECH4R600
Standard Models/2% Accuracy/Fixed Head
®
• Manual preset, automatic track and • Stand on handle bottom keeps tool • ISO 6789-2003 and
peak hold modes from rolling off flat surface ASME B107.300-2010 TORQUE
®
®
• Torque units conversion: • Dual 80 Technology on all 72- and standards compliant
®
N•m, ft-lb, in-lb 80-tooth ratchet heads • Certificate of NIST traceability
• Audible (tone) and tactile (vibrating • Low battery indicator and auto for 20–100% of full scale
handle) preset alerts shutoff (after two minutes idle)
Specifications TECH1R240 TECH2R100 TECH3R250 TECH4R600
Square Drive, inches 1/4 3/8 1/2 3/4
Head Type Sealed Fixed Ratchet Sealed Fixed Ratchet Sealed Fixed Ratchet Sealed Fixed Ratchet
Gear Teeth 5° 4.5° 4.5° 11°
Gear Action 72 80 80 32
Range, in-lb 24–240 60–1,200 300–3,000 720–7,200
Range, ft-lb 2–20 5–100 25–250 60–600
Range, N•m 2.71–27.12 6.8–135 34–339 81–813
Head Depth, inches 7/16 5/8 3/4 1-1/4
Head Width, inches 7/8 1-5/32 1-5/8 2-1/2
Length, inches 15-1/4 17-1/4 26-1/4 48
Operating Temperature 40–110 °F (5–42 °C) 40–110 °F (5–42 °C) 40–110 °F (5–42 °C) 40–110 °F (5–42 °C)
Storage Temperature 0–122 °F (-20–50 °C) 0–122 °F (-20–50 °C) 0–122 °F (-20–50 °C) 0–122 °F (-20–50 °C)
Battery, Type (qty) AA Alkaline (3) AA Alkaline (3) AA Alkaline (3) AA Alkaline (3)
Ratchet Service Kit RKRT72A RKRF80 RKRS80A RKRQC4
Storage Case PBTECH2 PBTECH2 PBTECH3 PBATECH4

TECH3FR250
Standard Models/2% TECH2Y100
Accuracy/Flex Head
®
• Techwrench (standard models)
• Torque accuracy ratchet head models: 2% TECH4Z600
CW, 3% CCW from 20–100% F.S.; 4% CW, 6%
CCW from 10–19% F.S. 8% CW; 10% CCW from
5–9% of full scale (TECH Z only)
• Torque accuracy interchangeable head
models: 4% CW, 6% CCW from 20–100% F.S. Standard Models/4% Accuracy/
(TECH Y only)
• Sealed flex head ratchets move ±15° Interchangeable Head
Specifications TECH1FR240 TECH2FR100 TECH3FR250 Specifications TECH1J240 TECH2Y100 TECH3X250 TECH4Z600
Square Drive, Head Type Interchangeable Interchangeable Interchangeable Interchangeable
inches 1/4 3/8 1/2
Range, in-lb 24–240 60–1,200 300–3,000 720–7,200
Sealed Flex Sealed Flex Sealed Flex
Head Type Range, ft-lb 2–20 5–100 25–250 60–600
Head Head Head
Gear Teeth 5° 4.5° 4.5° Range, N•m 27.1–27.12 6.8–135 34–339 81–813
Gear Action 72 80 80 Shank Dia. J (0.425ʺ) Y (0.560ʺ) X (0.735ʺ) Z (0.990ʺ)
Range, in-lb 24–240 60–1,200 300–3,000 Length, 13-3/4 15-1/2 23-3/4 42
inches
Range, ft-lb 2–20 5–100 25–250 Operating 40–110 °F 40–110 °F 40–110 °F 40–110 °F
Range, N•m 2.7–27.1 6.8–135 34–339 Temperature (5–42 °C) (5–42 °C) (5–42 °C) (5–42 °C)
Head Depth, Storage 0–122 °F 0–122 °F 0–122 °F 0–122 °F
inches 7/16 5/8 3/4 Temperature (-20–50 °C) (-20–50 °C) (-20–50 °C) (-20–50 °C)
Head Width, 7/8 1-5/32 1-5/8 Storage Case PBTECH2 PBTECH2 PBTECH3 PBATECH4
inches Wrench length specification does not include the length of interchangeable heads.
®
®
Length, inches 15-1/4 17-1/4 26-1/4 The certification of accuracy provided per ASME and ISO standards is
Operating 40–110 °F 40–110 °F 40–110 °F 20%–100% of full scale. *
Temperature (5–42 °C) (5–42 °C) (5–42 °C)
Storage 0–122 °F 0–122 °F 0–122 °F
Temperature (-20–50 °C) (-20–50 °C) (-20–50 °C)
Ratchet Service RKRT72A RKRF80 RKRS80A
Kit
Storage Case PBTECH2 PBTECH2 PBTECH3
• Do not exceed rated torque 329
• Do not use to break fasteners loose
• Periodic recalibration is necessary to maintain accuracy
• Read safety precautions on pages W1 to W4
