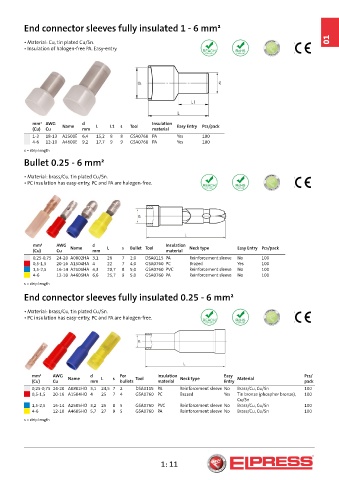

End connector sleeves fully insulated 1 - 6 mm²

01
• Material: Cu, tin plated Cu/Sn.
• Insulation of halogen-free PA. Easy-entry.

mm² AWG Name d L L1 s Tool Insulation Easy Entry Pcs/pack
(Cu) Cu mm material
1-3 18-13 A2500E 6,4 15,2 8 8 GSA0760 PA Yes 100
4-6 12-10 A4600E 9,2 17,7 9 9 GSA0760 PA Yes 100
s = strip length
Bullet 0.25 - 6 mm²

• Material: brass/Cu, tin plated Cu/Sn.
• PC insulation has easy-entry, PC and PA are halogen-free.

mm² AWG d Insulation
(Cu) Cu Name mm L s Bullet Tool material Neck type Easy Entry Pcs/pack
0,25-0,75 24-20 A0802HA 3,1 26 7 2,0 DSA0115 PA Reinforcement sleeve No 100
0,5-1,5 20-16 A1504HA 4 22 7 4,0 GSA0760 PC Brazed Yes 100
1,5-2,5 16-14 A2505HA 4,3 20,7 8 5,0 GSA0760 PVC Reinforcement sleeve No 100
4-6 12-10 A4605HA 6,6 25,7 9 5,0 GSA0760 PA Reinforcement sleeve No 100
s = strip length

End connector sleeves fully insulated 0.25 - 6 mm²

• Material: brass/Cu, tin plated Cu/Sn.
• PC insulation has easy-entry, PC and PA are halogen-free.

mm² AWG Name d L s For Tool Insulation Neck type Easy Material Pcs/
(Cu) Cu mm bullets material Entry pack
0,25-0,75 24-20 A0802HO 3,1 24,5 7 2 DSA0115 PA Reinforcement sleeve No Brass/Cu, Cu/Sn 100
0,5-1,5 20-16 A1504HO 4 25 7 4 GSA0760 PC Brazed Yes Tin bronze (phosphor bronze), 100
Cu/Sn
1,5-2,5 16-14 A2505HO 3,2 25 8 5 GSA0760 PVC Reinforcement sleeve No Brass/Cu, Cu/Sn 100
4-6 12-10 A4605HO 5,7 27 9 5 GSA0760 PA Reinforcement sleeve No Brass/Cu, Cu/Sn 100
s = strip length
