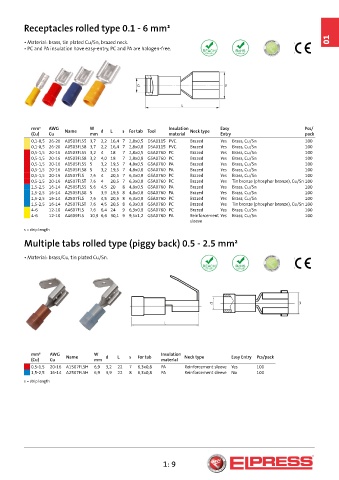

Receptacles rolled type 0.1 - 6 mm²

01
• Material: brass, tin plated Cu/Sn, brazed neck.
• PC and PA insulation have easy-entry, PC and PA are halogen-free.

mm² AWG W Insulation Easy Pcs/
(Cu) Cu Name mm d L s For tab Tool material Neck type Entry pack
0,1-0,5 26-20 A0503FLS5 3,7 2,2 16,4 7 2,8x0,5 DSA0115 PVC Brazed Yes Brass, Cu/Sn 100
0,1-0,5 26-20 A0503FLS8 3,7 2,2 16,4 7 2,8x0,8 DSA0115 PVC Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1503FLS5 3,2 4 18 7 2,8x0,5 GSA0760 PC Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1503FLS8 3,2 4,0 18 7 2,8x0,8 GSA0760 PC Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1505FLS5 5 3,2 19,5 7 4,8x0,5 GSA0760 PA Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1505FLS8 5 3,2 19,5 7 4,8x0,8 GSA0760 PA Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1507FLS 7,6 4 20,5 7 6,3x0,8 GSA0760 PC Brazed Yes Brass, Cu/Sn 100
0,5-1,5 20-16 A1507FLST 7,6 4 20,5 7 6,3x0,8 GSA0760 PC Brazed Yes Tin bronze (phosphor bronze), Cu/Sn 100
1,5-2,5 16-14 A2505FLS5 5,6 4,5 20 8 4,8x0,5 GSA0760 PA Brazed Yes Brass, Cu/Sn 100
1,5-2,5 16-14 A2505FLS8 5 3,9 19,5 8 4,8x0,8 GSA0760 PA Brazed Yes Brass, Cu/Sn 100
1,5-2,5 16-14 A2507FLS 7,6 4,5 20,5 8 6,3x0,8 GSA0760 PC Brazed Yes Brass, Cu/Sn 100
1,5-2,5 16-14 A2507FLST 7,6 4,5 20,5 8 6,3x0,8 GSA0760 PC Brazed Yes Tin bronze (phosphor bronze), Cu/Sn 100
4-6 12-10 A4607FLS 7,6 6,4 24 9 6,3x0,8 GSA0760 PC Brazed Yes Brass, Cu/Sn 100
4-6 12-10 A4609FLS 10,9 6,6 30,1 9 9,5x1,2 GSA0760 PA Reinforcement Yes Brass, Cu/Sn 100
sleeve
s = strip length

Multiple tabs rolled type (piggy back) 0.5 - 2.5 mm²

• Material: brass/Cu, tin plated Cu/Sn.

mm² AWG W Insulation
(Cu) Cu Name mm d L s For tab material Neck type Easy Entry Pcs/pack
0,5-1,5 20-16 A1507FLSH 6,9 3,2 22 7 6,3x0,8 PA Reinforcement sleeve Yes 100
1,5-2,5 16-14 A2507FLSH 6,9 3,9 22 8 6,3x0,8 PA Reinforcement sleeve No 100
s = strip length
