P. 16

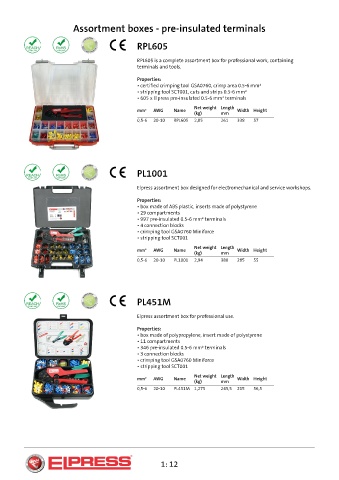

Assortment boxes - pre-insulated terminals


                                                 RPL605


                                                 RPL605 is a complete assortment box for professional work, containing
                                                 terminals and tools.

                                                 Properties:
                                                 • certified crimping tool GSA0760, crimp area 0.5-6 mm²
                                                 • stripping tool SCT001, cuts and strips 0.5-6 mm²
                                                 • 605 x Elpress pre-insulated 0.5-6 mm² terminals
                                                                     Net weight  Length
                                                 mm²   AWG    Name                  Width Height
                                                                     (kg)      mm
                                                 0,5-6  20-10  RPL605  2,05    261  338   57








                                                 PL1001

                                                 Elpress assortment box designed for electromechanical and service workshops.

                                                 Properties:
                                                 • box made of ABS plastic, inserts made of polystyrene
                                                 • 29 compartments
                                                 • 997 pre-insulated 0.5-6 mm² terminals
                                                 • 4 connection blocks
                                                 • crimping tool GSA0760 Miniforce
                                                 • stripping tool SCT001
                                                                     Net weight  Length
                                                 mm²   AWG    Name                  Width Height
                                                                     (kg)      mm
                                                 0,5-6  20-10  PL1001  2,94    380  285   55






                                                 PL451M


                                                 Elpress assortment box for professional use.

                                                 Properties:
                                                 • box made of polypropylene, insert made of polystyrene
                                                 • 11 compartments
                                                 • 346 pre-insulated 0.5-6 mm² terminals
                                                 • 3 connection blocks
                                                 • crimping tool GSA0760 Miniforce
                                                 • stripping tool SCT001
                                                                     Net weight  Length
                                                 mm²   AWG    Name                  Width Height
                                                                     (kg)      mm
                                                 0,5-6  20-10  PL451M 1,275    245,5  215  56,5
