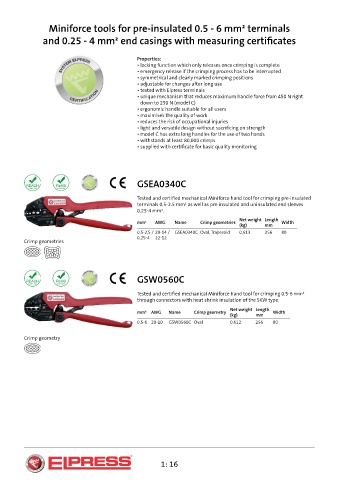

Miniforce tools for pre-insulated 0.5 - 6 mm² terminals

and 0.25 - 4 mm² end casings with measuring certificates

Properties:
• locking function which only releases once crimping is complete
• emergency release if the crimping process has to be interrupted
• symmetrical and clearly marked crimping positions
• adjustable for changes after long use
• tested with Elpress terminals
• unique mechanism that reduces maximum handle force from 450 N right
down to 250 N (model C)
• ergonomic handle suitable for all users

• maximises the quality of work
• reduces the risk of occupational injuries
• light and versatile design without sacrificing on strength
• model C has extra long handles for the use of two hands
• withstands at least 80,000 crimps
• supplied with certificate for basic quality monitoring

GSEA0340C

Tested and certified mechanical Miniforce hand tool for crimping pre-insulated
terminals 0.5-2.5 mm² as well as pre-insulated and uninsulated end sleeves
0.25-4 mm².
Net weight Length
mm² AWG Name Crimp geometries Width
(kg) mm
0,5-2,5 / 20-14 / GSEA0340C Oval, Trapezoid 0,613 256 80
0,25-4 22-12
Crimp geometries

GSW0560C

Tested and certified mechanical Miniforce hand tool for crimping 0.5-6 mm²
through connectors with heat shrink insulation of the SKW type.
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,5-6 20-10 GSW0560C Oval 0,612 256 80

Crimp geometry
