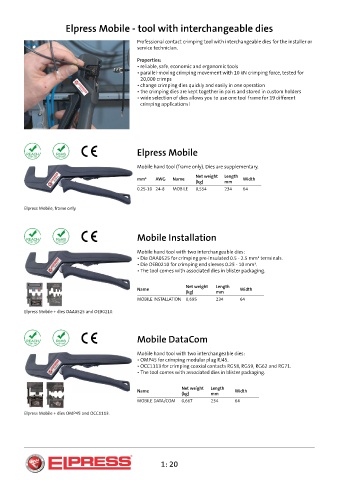

Elpress Mobile - tool with interchangeable dies

Professional contact crimping tool with interchangeable dies for the installer or
service technician.

Properties:
• reliable, safe, economic and ergonomic tools
• parallel-moving crimping movement with 10 kN crimping force, tested for
20,000 crimps
• change crimping dies quickly and easily in one operation
• the crimping dies are kept together in pairs and stored in custom holders
• wide selection of dies allows you to use one tool frame for 19 different
crimping applications!

Elpress Mobile

Mobile hand tool (frame only). Dies are supplementary.
Net weight Length
mm² AWG Name Width
(kg) mm
0,25-10 24-8 MOBILE 0,554 234 64

Elpress Mobile, frame only.

Mobile Installation

Mobile hand tool with two interchangeable dies:
• Die OAA0525 for crimping pre-insulated 0.5 - 2.5 mm² terminals.
• Die OEB0210 for crimping end sleeves 0.25 - 10 mm².
• The tool comes with associated dies in blister packaging.

Net weight Length
Name Width
(kg) mm
MOBILE INSTALLATION 0,695 234 64

Elpress Mobile + dies OAA0525 and OEB0210.

Mobile DataCom

Mobile hand tool with two interchangeable dies:
• OMP45 for crimping modular plug RJ45.
• OCC1113 for crimping coaxial contacts RG58, RG59, RG62 and RG71.
• The tool comes with associated dies in blister packaging.

Net weight Length
Name Width
(kg) mm
MOBILE DATA/COM 0,667 234 64

Elpress Mobile + dies OMP45 and OCC1113.

1: 20
