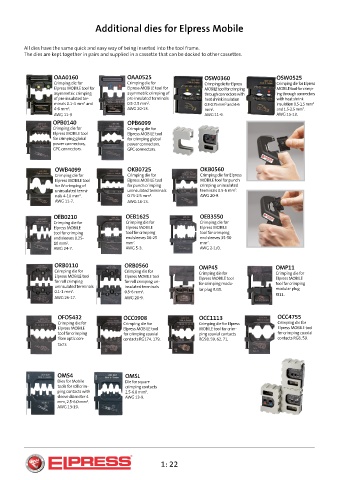

Additional dies for Elpress Mobile

All dies have the same quick and easy way of being inserted into the tool frame.
The dies are kept together in pairs and supplied in a cassette that can be docked to other cassettes.

OAA0160 OAA0525 OSW0360 OSW0525
Crimping die for Crimping die for Crimping die for Elpress Crimping die for Elpress
Elpress MOBILE tool for Elpress MOBILE tool for MOBILE tool for crimping MOBILE tool for crimp-
asymmetric crimping asymmetric crimping of through connectors with ing through connectors
of pre-insulated ter- pre-insulated terminals heat shrink insulation with heat shrink
2
minals 0.1-4 mm and 0.5-2.5 mm . 2 0.3-0.75 mm and 4-6 insulation 0.5-1.5 mm 2
2
4-6 mm . 2 AWG 20-13. mm . 2 and 1.5-2.5 mm . 2
AWG 11-9 AWG 11-9. AWG 15-13.
OPB0140 OPB6099
Crimping die for Crimping die for
Elpress MOBILE tool Elpress MOBILE tool
for crimping global for crimping global
power connectors, power connectors,
GPC connectors. GPC connectors.

OWB4099 OKB0725 OKB0560
Crimping die for Crimping die for Crimping die for Elpress
Elpress MOBILE tool Elpress MOBILE tool MOBILE tool for punch
for W crimping of for punch crimping crimping uninsulated
uninsulated termi- uninsulated terminals terminals 0.5-6 mm . 2
nals 4-10 mm . 2 0.75-2.5 mm . 2 AWG 20-9.
AWG 11-7. AWG 18-13.

OEB0210 OEB1625 OEB3550
Crimping die for Crimping die for Crimping die for
Elpress MOBILE Elpress MOBILE Elpress MOBILE
tool for crimping tool for crimping tool for crimping
end sleeves 0.25- end sleeves 16-25 end sleeves 35-50
2
10 mm . 2 mm . mm . 2
AWG 24-7. AWG 5-3. AWG 2-1/0.

ORB0110 ORB0560 OMP45 OMP11
Crimping die for Crimping die for Crimping die for Crimping die for
Elpress MOBILE tool Elpress MOBILE tool Elpress MOBILE tool Elpress MOBILE
for roll crimping for roll crimping un- for crimping modu- tool for crimping
uninsulated terminals insulated terminals modular plug
0.1-1 mm . 2 0.5-6 mm . 2 lar plug RJ45. RJ11.
AWG 26-17. AWG 20-9.

OFO5432 OCC0908 OCC1113 OCC4755
Crimping die for Crimping die for Crimping die for Elpress Crimping die for
Elpress MOBILE Elpress MOBILE tool MOBILE tool for crim- Elpress MOBILE tool
tool for crimping for crimping coaxial ping coaxial contacts for crimping coaxial
fibre optic con- contacts RG174, 179. RG58, 59, 62, 71. contacts RG6, 59.
tacts.

OMS4 OMSL
Dies for Mobile Die for square
tools for roll crim- crimping contacts
ping contacts with 2.5-6.0 mm . 2
sleeve diameter 4 AWG 13-9.
mm, 2.5-6.0 mm . 2
AWG 13-19.
