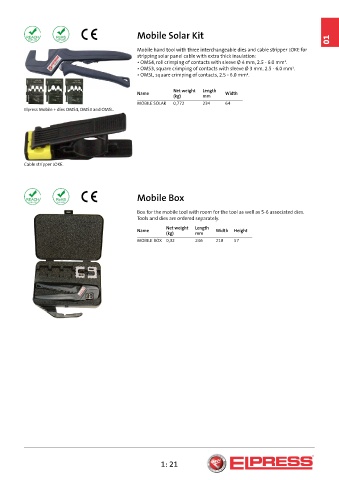

Mobile Solar Kit
01
Mobile hand tool with three interchangeable dies and cable stripper LOKE for
stripping solar panel cable with extra thick insulation:
• OMS4, roll crimping of contacts with sleeve Ø 4 mm, 2.5 - 6.0 mm².
• OMS3, square crimping of contacts with sleeve Ø 3 mm, 2.5 - 6.0 mm².
• OMSL, square crimping of contacts, 2.5 - 6.0 mm².

Net weight Length
Name Width
(kg) mm
MOBILE SOLAR 0,772 234 64
Elpress Mobile + dies OMS4, OMS3 and OMSL.

Cable stripper LOKE.

Mobile Box

Box for the mobile tool with room for the tool as well as 5-6 associated dies.
Tools and dies are ordered separately.
Net weight Length
Name Width Height
(kg) mm
MOBILE BOX 0,32 246 218 57

1: 21
