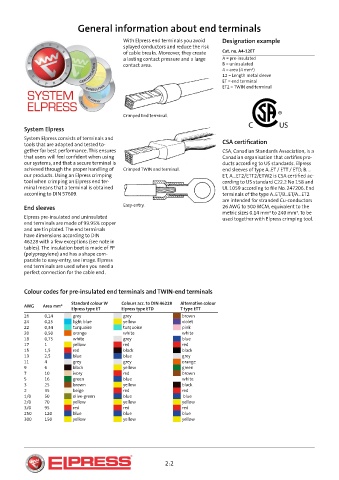

General information about end terminals

With Elpress end terminals you avoid Designation example

splayed conductors and reduce the risk
of cable breaks. Moreover, they create Cat. no. A4-12ET
a lasting contact pressure and a large A = pre-insulated
contact area. B = uninsulated
4 = area (4 mm²)
12 = Length metal sleeve

ET = end terminal
ET2 = TWIN end terminal

Crimped End terminal.

System Elpress
System Elpress consists of terminals and
tools that are adapted and tested to- CSA certification
gether for best performance. This ensures CSA, Canadian Standards Association, is a
that users will feel confident when using Canadian organisation that certifies pro-
our systems, and that a secure terminal is ducts according to US standards. Elpress
achieved through the proper handling of Crimped TWIN end terminal. end sleeves of type A..ET / ETT / ETD, B. ..
our products. Using an Elpress crimping ET, A...ET2/ETT2/ETW2 is CSA certified ac-

tool when crimping an Elpress end ter- cording to US standard C22.2 No 158 and
minal means that a terminal is obtained UL 1059 according to file No. 247206. End
according to DIN 57609. terminals of the type A..ET/B...ET/A...ET2
are intended for stranded Cu-conductors
Easy-entry.
End sleeves 26 AWG to 500 MCM, equivalent to the

metric sizes 0.14 mm² to 240 mm². To be
Elpress pre-insulated and uninsulated used together with Elpress crimping tool.
end terminals are made of 99.95% copper
and are tin plated. The end terminals
have dimensions according to DIN
46228 with a few exceptions (see note in
tables). The insulation boot is made of PP
(polypropylene) and has a shape com-
parable to easy-entry, see image. Elpress
end terminals are used when you need a
perfect connection for the cable end .

Colour codes for pre-insulated end terminals and TWIN-end terminals

Standard colour W Colours acc. to DIN 46228 Alternative colour
AWG Area mm²
Elpress type ET Elpress type ETD T type ETT
26 0,14 grey grey brown
24 0,25 light blue yellow violet
22 0,34 turquoise turquoise pink
20 0,50 orange white white
18 0,75 white grey blue
17 1 yellow red red
15 1,5 red black black
13 2,5 blue blue grey
11 4 grey grey orange
9 6 black yellow green
7 10 ivory red brown
5 16 green blue white
3 25 brown yellow black
2 35 beige red red
1/0 50 olive-green blue blue
2/0 70 yellow yellow yellow
3/0 95 red red red
250 120 blue blue blue
300 150 yellow yellow yellow

2:2
