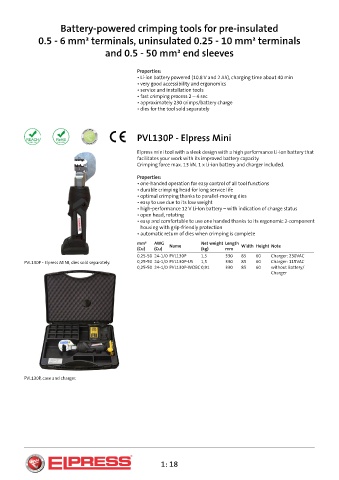

Battery-powered crimping tools for pre-insulated

0.5 - 6 mm² terminals, uninsulated 0.25 - 10 mm² terminals
and 0.5 - 50 mm² end sleeves

Properties:
• Li-ion battery powered (10.8 V and 2 Ah), charging time about 40 min
• very good accessibility and ergonomics
• service and installation tools
• fast crimping process 2 – 4 sec
• approximately 230 crimps/battery charge
• dies for the tool sold separately

PVL130P - Elpress Mini

Elpress mini tool with a sleek design with a high performance Li-Ion battery that
facilitates your work with its improved battery capacity.
Crimping force max. 13 kN. 1 x Li-ion battery and charger included.
Properties:
• one-handed operation for easy control of all tool functions
• durable crimping head for long service life
• optimal crimping thanks to parallel-moving dies
• easy to use due to its low weight
• high-performance 12 V Li-Ion battery – with indication of charge status
• open head, rotating
• easy and comfortable to use one handed thanks to its ergonomic 2-component
housing with grip-friendly protection
• automatic return of dies when crimping is complete
mm² AWG Name Net weight Length Width Height Note
(Cu) (Cu) (kg) mm
0,25-50 24-1/0 PVL130P 1,5 330 85 60 Charger: 230VAC
PVL130P - Elpress MINI, dies sold separately. 0,25-50 24-1/0 PVL130P-US 1,5 330 85 60 Charger: 115VAC
0,25-50 24-1/0 PVL130P-WOBC 0,91 330 85 60 without Battery/
Charger

PVL130P, case and charger.
