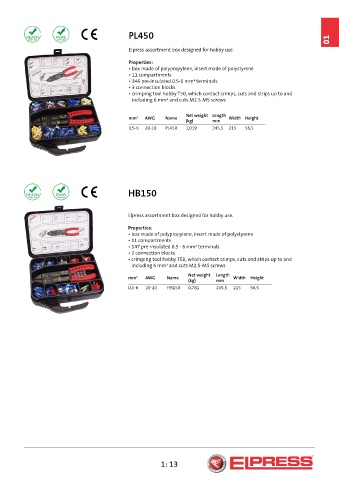

PL450
01
Elpress assortment box designed for hobby use.

Properties:
• box made of polypropylene, insert made of polystyrene
• 11 compartments
• 346 pre-insulated 0.5-6 mm² terminals
• 3 connection blocks
• crimping tool hobby T50, which contact crimps, cuts and strips up to and
including 6 mm² and cuts M2.5-M5 screws

Net weight Length
mm² AWG Name Width Height
(kg) mm
0,5-6 20-10 PL450 1,019 245,5 215 56,5

HB150

Elpress assortment box designed for hobby use.

Properties:
• box made of polypropylene, insert made of polystyrene
• 11 compartments
• 147 pre-insulated 0.5 - 6 mm² terminals
• 2 connection blocks
• crimping tool hobby T50, which contact crimps, cuts and strips up to and
including 6 mm² and cuts M2.5-M5 screws
Net weight Length
mm² AWG Name Width Height
(kg) mm
0,5-6 20-10 HB150 0,781 245,5 215 56,5

1: 13
