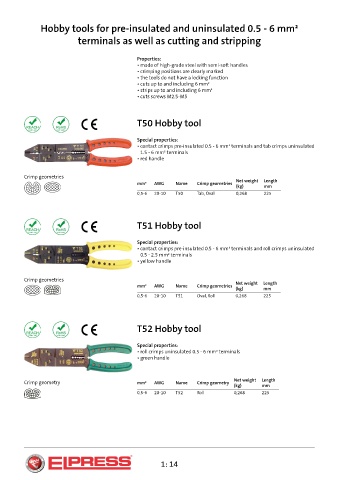

Hobby tools for pre-insulated and uninsulated 0.5 - 6 mm²

terminals as well as cutting and stripping

Properties:

• made of high-grade steel with semi-soft handles
• crimping positions are clearly marked
• the tools do not have a locking function
• cuts up to and including 6 mm²
• strips up to and including 6 mm²
• cuts screws M2.5-M5

T50 Hobby tool

Special properties:
• contact crimps pre-insulated 0.5 - 6 mm² terminals and tab crimps uninsulated
1.5 - 6 mm² terminals
• red handle

Crimp geometries
mm² AWG Name Crimp geometries Net weight Length
(kg) mm
0,5-6 20-10 T50 Tab, Oval 0,268 225

T51 Hobby tool

Special properties:
• contact crimps pre-insulated 0.5 - 6 mm² terminals and roll crimps uninsulated
0.5 - 2.5 mm² terminals
• yellow handle

Crimp geometries
mm² AWG Name Crimp geometries Net weight Length
(kg) mm
0,5-6 20-10 T51 Oval, Roll 0,268 225

T52 Hobby tool

Special properties:
• roll crimps uninsulated 0.5 - 6 mm² terminals
• green handle

Net weight Length
Crimp geometry mm² AWG Name Crimp geometry
(kg) mm
0,5-6 20-10 T52 Roll 0,268 225

1: 14
