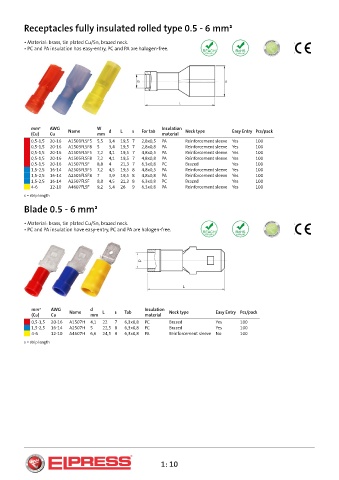

Receptacles fully insulated rolled type 0.5 - 6 mm²

• Material: brass, tin plated Cu/Sn, brazed neck.
• PC and PA insulation has easy-entry, PC and PA are halogen-free.

mm² AWG W Insulation
(Cu) Cu Name mm d L s For tab material Neck type Easy Entry Pcs/pack
0,5-1,5 20-16 A1503FLSF5 5,5 3,4 19,5 7 2,8x0,5 PA Reinforcement sleeve Yes 100
0,5-1,5 20-16 A1503FLSF8 5 3,4 19,5 7 2,8x0,8 PA Reinforcement sleeve Yes 100
0,5-1,5 20-16 A1505FLSF5 7,2 4,1 19,5 7 4,8x0,5 PA Reinforcement sleeve Yes 100
0,5-1,5 20-16 A1505FLSF8 7,2 4,1 19,5 7 4,8x0,8 PA Reinforcement sleeve Yes 100
0,5-1,5 20-16 A1507FLSF 8,8 4 21,3 7 6,3x0,8 PC Brazed Yes 100
1,5-2,5 16-14 A2505FLSF5 7,2 4,5 19,5 8 4,8x0,5 PA Reinforcement sleeve Yes 100
1,5-2,5 16-14 A2505FLSF8 7 3,9 19,5 8 4,8x0,8 PA Reinforcement sleeve Yes 100
1,5-2,5 16-14 A2507FLSF 8,8 4,5 21,3 8 6,3x0,8 PC Brazed Yes 100
4-6 12-10 A4607FLSF 9,2 5,4 26 9 6,3x0,8 PA Reinforcement sleeve Yes 100
s = strip length

Blade 0.5 - 6 mm²

• Material: brass, tin plated Cu/Sn, brazed neck.
• PC and PA insulation have easy-entry, PC and PA are halogen-free.

mm² AWG Name d L s Tab Insulation Neck type Easy Entry Pcs/pack
(Cu) Cu mm material
0,5-1,5 20-16 A1507H 4,1 22 7 6,3x0,8 PC Brazed Yes 100
1,5-2,5 16-14 A2507H 5 22,5 8 6,3x0,8 PC Brazed Yes 100
4-6 12-10 A4607H 6,6 24,5 9 6,3x0,8 PA Reinforcement sleeve No 100
s = strip length

1: 10
