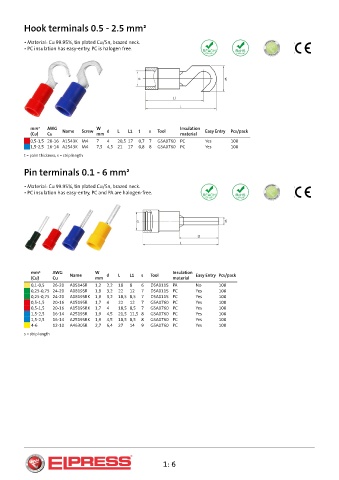

Hook terminals 0.5 - 2.5 mm²

• Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
• PC insulation has easy-entry, PC is halogen free.

mm² AWG W Insulation
(Cu) Cu Name Screw mm d L L1 t s Tool material Easy Entry Pcs/pack
0,5-1,5 20-16 A1543K M4 7 4 20,5 17 0,7 7 GSA0760 PC Yes 100
1,5-2,5 16-14 A2543K M4 7,5 4,5 21 17 0,8 8 GSA0760 PC Yes 100
t = palm thickness, s = strip length

Pin terminals 0.1 - 6 mm²

• Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
• PC insulation has easy-entry, PC and PA are halogen-free.

mm² AWG Name W d L L1 s Tool Insulation Easy Entry Pcs/pack
(Cu) Cu mm material
0,1-0,5 26-20 A0514SR 1,2 2,2 18 8 6 DSA0115 PA No 100
0,25-0,75 24-20 A0819SR 1,8 3,2 22 12 7 DSA0115 PC Yes 100
0,25-0,75 24-20 A0819SRK 1,8 3,2 18,5 8,5 7 DSA0115 PC Yes 100
0,5-1,5 20-16 A1519SR 1,7 4 22 12 7 GSA0760 PC Yes 100
0,5-1,5 20-16 A1519SRK 1,7 4 18,5 8,5 7 GSA0760 PC Yes 100
1,5-2,5 16-14 A2519SR 1,9 4,5 21,5 11,5 8 GSA0760 PC Yes 100
1,5-2,5 16-14 A2519SRK 1,9 4,5 18,5 8,5 8 GSA0760 PC Yes 100
4-6 12-10 A4630SR 2,7 6,4 27 14 9 GSA0760 PC Yes 100
s = strip length
