P. 12

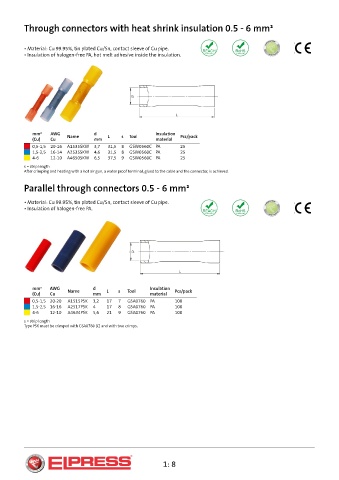

Through connectors with heat shrink insulation 0.5 - 6 mm²
• Material: Cu 99.95%, tin plated Cu/Sn, contact sleeve of Cu pipe.
• Insulation of halogen-free PA, hot melt adhesive inside the insulation.
mm² AWG Name d L s Tool Insulation Pcs/pack
(Cu) Cu mm material
0,5-1,5 20-16 A1535SKW 3,7 31,5 8 GSW0560C PA 25
1,5-2,5 16-14 A2535SKW 4,6 31,5 8 GSW0560C PA 25
4-6 12-10 A4650SKW 6,5 37,5 9 GSW0560C PA 25
s = strip length
After crimping and heating with a hot air gun, a water proof terminal, glued to the cable and the connector, is achieved.
Parallel through connectors 0.5 - 6 mm²
• Material: Cu 99.95%, tin plated Cu/Sn, contact sleeve of Cu pipe.
• Insulation of halogen-free PA.
mm² AWG Name d L s Tool Insulation Pcs/pack
(Cu) Cu mm material
0,5-1,5 20-20 A1515PSK 3,2 17 7 GSA0760 PA 100
1,5-2,5 16-16 A2517PSK 4 17 8 GSA0760 PA 100
4-6 12-10 A4634PSK 5,6 21 9 GSA0760 PA 100
s = strip length
Type PSK must be crimped with GSA0760 (C) and with two crimps.
1: 8
