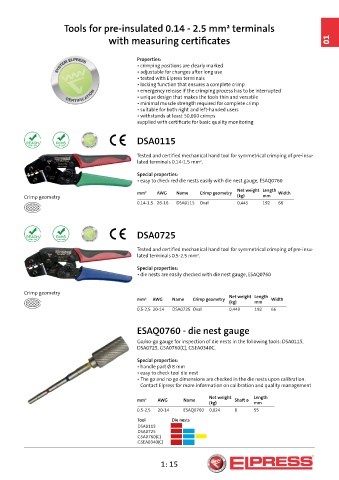

Tools for pre-insulated 0.14 - 2.5 mm² terminals

with measuring certificates 01

Properties:
• crimping positions are clearly marked
• adjustable for changes after long use
• tested with Elpress terminals
• locking function that ensures a complete crimp
• emergency release if the crimping process has to be interrupted
• unique design that makes the tools thin and versatile
• minimal muscle strength required for complete crimp
• suitable for both right and left-handed users

• withstands at least 50,000 crimps
supplied with certificate for basic quality monitoring

DSA0115

Tested and certified mechanical hand tool for symmetrical crimping of pre-insu-
lated terminals 0.14-1.5 mm².

Special properties:
• easy to check red die nests easily with die nest gauge, ESAQ0760
Net weight Length
mm² AWG Name Crimp geometry Width
Crimp geometry (kg) mm
0,14-1,5 26-16 DSA0115 Oval 0,445 192 66

DSA0725

Tested and certified mechanical hand tool for symmetrical crimping of pre-insu-
lated terminals 0.5-2.5 mm².
Special properties:
• die nests are easily checked with die nest gauge, ESAQ0760

Crimp geometry
mm² AWG Name Crimp geometry Net weight Length Width
(kg) mm
0,5-2,5 20-14 DSA0725 Oval 0,449 192 66

ESAQ0760 - die nest gauge
Go/no-go gauge for inspection of die nests in the following tools: DSA0115,
DSA0725, GSA0760(C), GSEA0340C.
Special properties:
• handle part Ø 8 mm
• easy to check tool die nest
• The go and no go dimensions are checked in the die nests upon calibration.
Contact Elpress for more information on calibration and quality management

Net weight Length
mm² AWG Name Shaft ø
(kg) mm
0,5-2,5 20-14 ESAQ0760 0,024 8 55

Tool Die nests

DSA0115
DSA0725
GSA0760(C)
GSEA0340(C)

1: 15
