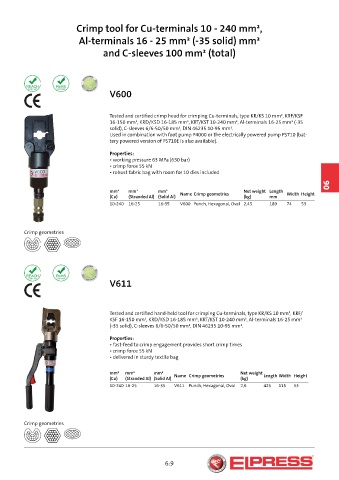

Crimp tool for Cu-terminals 10 - 240 mm²,

Al-terminals 16 - 25 mm² (-35 solid) mm²
and C-sleeves 100 mm² (total)

V600

Tested and certified crimp head for crimping Cu-terminals, type KR/KS 10 mm², KRF/KSF
16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm², Al-terminals 16-25 mm² (-35
solid), C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².
Used in combination with foot pump P4000 or the electrically powered pump PS710 (bat-
tery powered version of PS710E is also available).

Properties:
• working pressure 63 MPa (630 bar)
• crimp force 55 kN
• robust fabric bag with room for 10 dies included

06
mm² mm² mm² Name Crimp geometries Net weight Length Width Height
(Cu) (Stranded Al) (Solid Al) (kg) mm
10-240 16-25 16-35 V600 Punch, Hexagonal, Oval 2,45 189 74 53

Crimp geometries

V611

Tested and certified hand-held tool for crimping Cu-terminals, type KR/KS 10 mm², KRF/
KSF 16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm², Al-terminals 16-25 mm²
(-35 solid), C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².

Properties:
• fast-feed to crimp engagement provides short crimp times
• crimp force 55 kN
• delivered in sturdy textile bag

mm² mm² mm² Net weight
(Cu) (Stranded Al) (Solid Al) Name Crimp geometries (kg) Length Width Height
10-240 16-25 16-35 V611 Punch, Hexagonal, Oval 2,6 425 115 53

Crimp geometries

6:9
