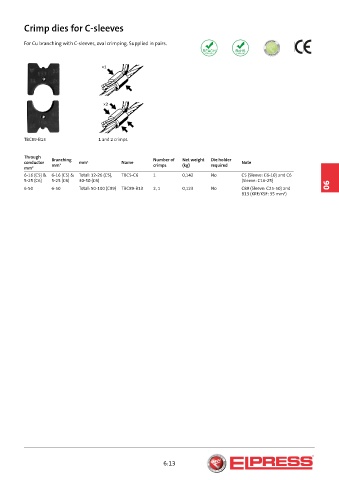

Crimp dies for C-sleeves

For Cu branching with C-sleeves, oval crimping. Supplied in pairs.

TBC89-B13 1 and 2 crimps.

Through Branching Number of Net weight Die holder
conductor mm² mm² Name crimps (kg) required Note
mm²
6-16 (C5) & 6-16 (C5) & Total: 12-26 (C5), TBC5-C6 1 0,142 No C5 (Sleeve: C6-10) and C6
5-25 (C6) 5-25 (C6) 30-50 (C6) (Sleeve: C16-25)
6-50 6-50 Total: 50-100 (C89) TBC89-B13 2, 1 0,123 No C89 (Sleeve: C25-50) and 06
B13 (KRF/KSF: 35 mm²)
