P. 128

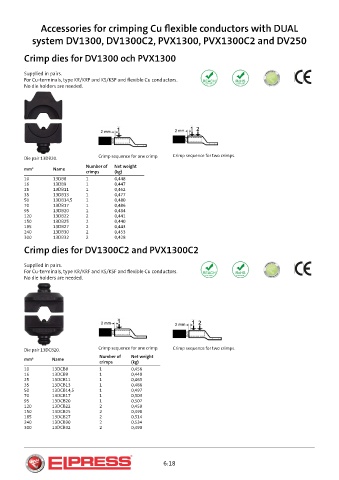

Accessories for crimping Cu flexible conductors with DUAL
system DV1300, DV1300C2, PVX1300, PVX1300C2 and DV250
Crimp dies for DV1300 och PVX1300
Supplied in pairs.
For Cu-terminals, type KR/KRF and KS/KSF and flexible Cu conductors.
No die holders are needed.
Die pair 13DB20. Crimp sequence for one crimp. Crimp sequence for two crimps.
Number of Net weight
mm² Name
crimps (kg)
10 13DB8 1 0,448
16 13DB9 1 0,447
25 13DB11 1 0,462
35 13DB13 1 0,477
50 13DB14,5 1 0,480
70 13DB17 1 0,486
95 13DB20 1 0,484
120 13DB22 2 0,441
150 13DB25 2 0,440
185 13DB27 2 0,443
240 13DB30 2 0,453
300 13DB32 2 0,428
Crimp dies for DV1300C2 and PVX1300C2
Supplied in pairs.
For Cu-terminals, type KR/KRF and KS/KSF and flexible Cu conductors.
No die holders are needed.
Die pair 13DCB20. Crimp sequence for one crimp. Crimp sequence for two crimps.
Number of Net weight
mm² Name
crimps (kg)
10 13DCB8 1 0,456
16 13DCB9 1 0,440
25 13DCB11 1 0,465
35 13DCB13 1 0,486
50 13DCB14,5 1 0,497
70 13DCB17 1 0,503
95 13DCB20 1 0,507
120 13DCB22 2 0,450
150 13DCB25 2 0,498
185 13DCB27 2 0,514
240 13DCB30 2 0,534
300 13DCB32 2 0,490
6:18
