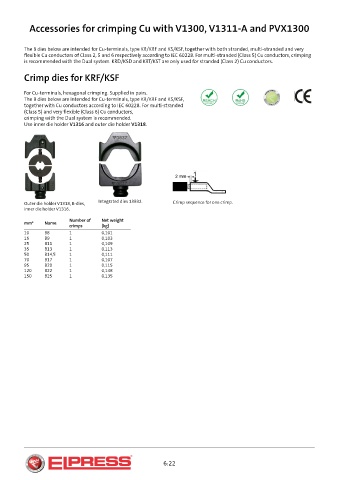

Accessories for crimping Cu with V1300, V1311-A and PVX1300

The B dies below are intended for Cu-terminals, type KR/KRF and KS/KSF, together with both stranded, multi-stranded and very
flexible Cu conductors of Class 2, 5 and 6 respectively according to IEC 60228. For multi-stranded (Class 5) Cu conductors, crimping
is recommended with the Dual system. KRD/KSD and KRT/KST are only used for stranded (Class 2) Cu conductors.

Crimp dies for KRF/KSF

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The B dies below are intended for Cu-terminals, type KR/KRF and KS/KSF,
together with Cu conductors according to IEC 60228. For multi-stranded
(Class 5) and very flexible (Class 6) Cu conductors,
crimping with the Dual system is recommended.
Use inner die holder V1316 and outer die holder V1318.

Integrated dies 13B32. Crimp sequence for one crimp.
Outer die holder V1318, B-dies,
inner die holder V1316.
Number of Net weight
mm² Name
crimps (kg)
10 B8 1 0,101
16 B9 1 0,103
25 B11 1 0,109
35 B13 1 0,113
50 B14,5 1 0,111
70 B17 1 0,107
95 B20 1 0,115
120 B22 1 0,148
150 B25 1 0,135

6:22
