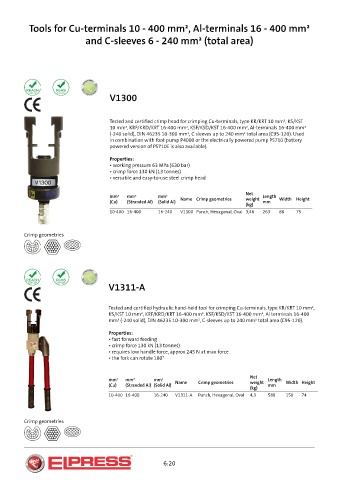

Tools for Cu-terminals 10 - 400 mm², Al-terminals 16 - 400 mm²

and C-sleeves 6 - 240 mm² (total area)

V1300

Tested and certified crimp head for crimping Cu-terminals, type KR/KRT 10 mm², KS/KST
10 mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², Al-terminals 16-400 mm²
(-240 solid), DIN 46235 10-300 mm², C sleeves up to 240 mm² total area (C95-120). Used
in combination with foot pump P4000 or the electrically powered pump PS710 (battery
powered version of PS710E is also available).
Properties:
• working pressure 63 MPa (630 bar)
• crimp force 130 kN (13 tonnes)
• versatile and easy-to-use steel crimp head

Net
mm² mm² mm² Name Crimp geometries weight Length Width Height
(Cu) (Stranded Al) (Solid Al) mm
(kg)
10-400 16-400 16-240 V1300 Punch, Hexagonal, Oval 3,46 263 88 75

Crimp geometries

V1311-A

Tested and certified hydraulic hand-held tool for crimping Cu-terminals, type KR/KRT 10 mm²,
KS/KST 10 mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², Al terminals 16-400
mm² (-240 solid), DIN 46235 10-300 mm², C-sleeves up to 240 mm² total area (C95-120).
Properties:
• fast forward feeding
• crimp force 130 kN (13 tonnes)
• requires low handle force, approx 245 N at max force
• the fork can rotate 180°

Net
mm² mm² mm² Name Crimp geometries weight Length Width Height
(Cu) (Stranded Al) (Solid Al) mm
(kg)
10-400 16-400 16-240 V1311-A Punch, Hexagonal, Oval 4,3 588 150 74

Crimp geometries
