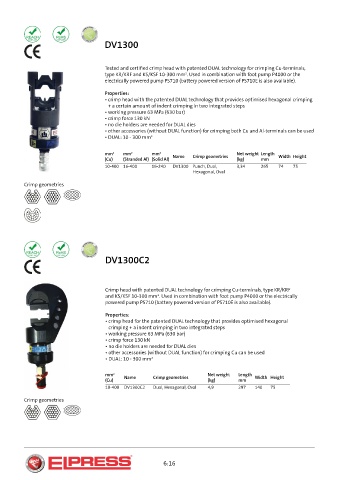

DV1300

Tested and certified crimp head with patented DUAL technology for crimping Cu-terminals,
type KR/KRF and KS/KSF 10-300 mm². Used in combination with foot pump P4000 or the
electrically powered pump PS710 (battery powered version of PS710E is also available).

Properties:
• crimp head with the patented DUAL technology that provides optimised hexagonal crimping
+ a certain amount of indent crimping in two integrated steps
• working pressure 63 MPa (630 bar)
• crimp force 130 kN
• no die holders are needed for DUAL dies
• other accessories (without DUAL function) for crimping both Cu and Al-terminals can be used
• DUAL: 10 - 300 mm²

mm² mm² mm² Name Crimp geometries Net weight Length Width Height
(Cu) (Stranded Al) (Solid Al) (kg) mm
10-400 16-400 16-240 DV1300 Punch, Dual, 3,34 265 74 75
Hexagonal, Oval

Crimp geometries

DV1300C2

Crimp head with patented DUAL technology for crimping Cu-terminals, type KR/KRF
and KS/KSF 10-300 mm². Used in combination with foot pump P4000 or the electrically
powered pump PS710 (battery powered version of PS710E is also available).
Properties:
• crimp head for the patented DUAL technology that provides optimised hexagonal
crimping + a indent crimping in two integrated steps
• working pressure 63 MPa (630 bar)
• crimp force 130 kN
• no die holders are needed for DUAL dies
• other accessories (without DUAL function) for crimping Cu can be used
• DUAL: 10 - 300 mm²

mm² Name Crimp geometries Net weight Length Width Height
(Cu) (kg) mm
10-400 DV1300C2 Dual, Hexagonal, Oval 4,9 297 140 75

Crimp geometries
