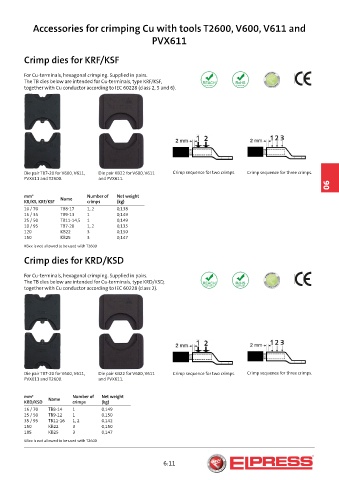

Page 121 - Elpress英文样本电气连接压接系统

Accessories for crimping Cu with tools T2600, V600, V611 and

PVX611

Crimp dies for KRF/KSF

For Cu-terminals, hexagonal crimping. Supplied in pairs.
The TB dies below are intended for Cu-terminals, type KRF/KSF,
together with Cu conductor according to IEC 60228 (class 2, 5 and 6).

Die pair TB7-20 for V600, V611, Die pair KB22 for V600, V611 Crimp sequence for two crimps. Crimp sequence for three crimps.
PVX611 and T2600. and PVX611.
06

mm² Name Number of Net weight
KR/KS, KRF/KSF crimps (kg)
10 / 70 TB8-17 1, 2 0,138
16 / 35 TB9-13 1 0,149
25 / 50 TB11-14,5 1 0,149
10 / 95 TB7-20 1, 2 0,135
120 KB22 3 0,150
150 KB25 3 0,147
KBxx is not allowed to be used with T2600

Crimp dies for KRD/KSD
For Cu-terminals, hexagonal crimping. Supplied in pairs.
The TB dies below are intended for Cu-terminals, type KRD/KSD,
together with Cu conductor according to IEC 60228 (class 2).

Die pair TB7-20 for V600, V611, Die pair KB22 for V600, V611 Crimp sequence for two crimps. Crimp sequence for three crimps.
PVX611 and T2600. and PVX611.

mm² Name Number of Net weight
KRD/KSD crimps (kg)
16 / 70 TB8-14 1 0,149
25 / 50 TB9-12 1 0,150
35 / 95 TB11-16 1, 2 0,142
150 KB22 3 0,150
185 KB25 3 0,147
KBxx is not allowed to be used with T2600
