P. 118

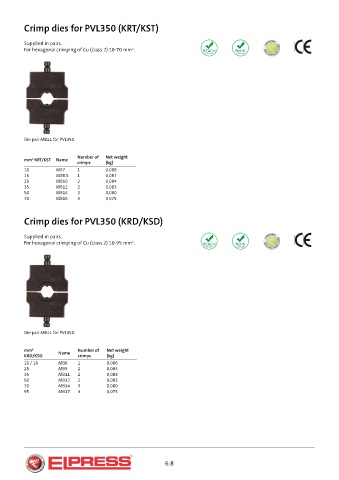

Crimp dies for PVL350 (KRT/KST)
Supplied in pairs.
For hexagonal crimping of Cu (class 2) 10-70 mm².
Die pair MB11 for PVL350.
Number of Net weight
mm² KRT/KST Name
crimps (kg)
10 MB7 1 0,088
16 MB8,5 1 0,087
25 MB10 2 0,084
35 MB12 2 0,083
50 MB14 3 0,080
70 MB16 3 0,075
Crimp dies for PVL350 (KRD/KSD)
Supplied in pairs.
For hexagonal crimping of Cu (class 2) 10-95 mm².
Die pair MB11 for PVL350.
mm² Number of Net weight
KRD/KSD Name crimps (kg)
10 / 16 MB8 1 0,086
25 MB9 2 0,085
35 MB11 2 0,083
50 MB12 2 0,083
70 MB14 3 0,080
95 MB17 3 0,075
6:8
