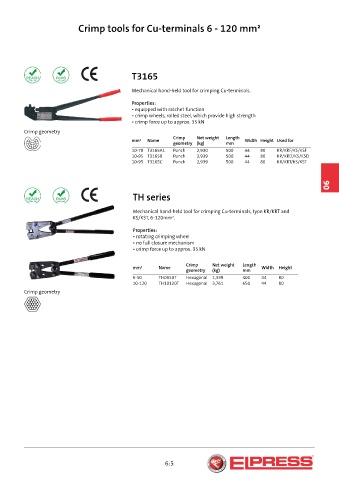

Crimp tools for Cu-terminals 6 - 120 mm²

T3165

Mechanical hand-held tool for crimping Cu-terminals.

Properties:
• equipped with ratchet function
• crimp wheels, rolled steel, which provide high strength
• crimp force up to approx. 35 kN

Crimp geometry
Crimp Net weight Length
mm² Name Width Height Used for
geometry (kg) mm
10-70 T3165A1 Punch 2,930 500 44 80 KR/KRF/KS/KSF
10-95 T3165B Punch 2,939 500 44 80 KR/KRD/KS/KSD
10-95 T3165C Punch 2,939 500 44 80 KR/KRT/KS/KST

06

TH series

Mechanical hand-held tool for crimping Cu-terminals, type KR/KRT and
KS/KST, 6-120mm².

Properties:
• rotating crimping wheel
• no full closure mechanism
• crimp force up to approx. 35 kN

Crimp Net weight Length
mm² Name Width Height
geometry (kg) mm
6-50 TH0650T Hexagonal 1,339 400 44 80
10-120 TH10120T Hexagonal 3,761 650 44 80
Crimp geometry

6:5
