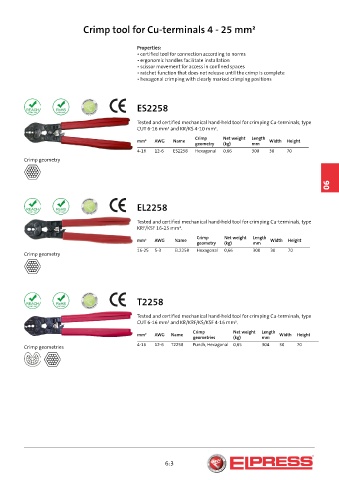

Crimp tool for Cu-terminals 4 - 25 mm²

Properties:
• certified tool for connection according to norms

• ergonomic handles facilitate installation
• scissor movement for access in confined spaces
• ratchet function that does not release until the crimp is complete
• hexagonal crimping with clearly marked crimping positions

ES2258

Tested and certified mechanical hand-held tool for crimping Cu-terminals, type
CUT 6-16 mm² and KR/KS 4-10 mm².
Crimp Net weight Length
mm² AWG Name Width Height
geometry (kg) mm
4-16 12-6 ES2258 Hexagonal 0,66 300 30 70
Crimp geometry

06

EL2258

Tested and certified mechanical hand-held tool for crimping Cu-terminals, type
KRF/KSF 16-25 mm².

Crimp Net weight Length
mm² AWG Name Width Height
geometry (kg) mm
16-25 5-3 EL2258 Hexagonal 0,66 300 30 70
Crimp geometry

T2258

Tested and certified mechanical hand-held tool for crimping Cu-terminals, type
CUT 6-16 mm² and KR/KRF/KS/KSF 4-16 mm².
Crimp Net weight Length
mm² AWG Name Width Height
geometries (kg) mm
4-16 12-6 T2258 Punch, Hexagonal 0,65 304 30 70
Crimp geometries

6:3
