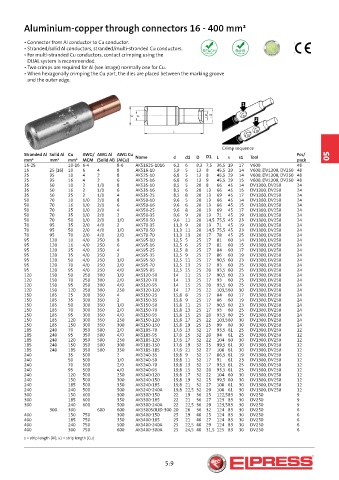

Aluminium-copper through connectors 16 - 400 mm²

• Connector from Al conductor to Cu conductor.
• Stranded/solid Al conductors, stranded/multi-stranded Cu conductors.
• For multi-stranded Cu conductors, contact crimping using the
DUAL system is recommended.
• Two crimps are required for Al (see image) normally one for Cu.
• When hexagonally crimping the Cu part, the dies are placed between the marking groove
and the outer edge.

Crimp sequence
Stranded Al Solid Al Cu AWG/ AWG Al AWG Cu Name d d1 D D1 L s s1 Tool Pcs/ 05
mm² mm² mm² MCM (Solid Al) (AlCu) pack
16-25 10-16 6-4 8-6 AKS1625-1016 6,2 6 8,3 7,5 36,5 19 17 V600 48
16 25 (16) 10 6 4 8 AKS16-10 5,9 5 13 8 45,5 29 14 V600, DV1300, DV250 48
25 35 10 4 2 8 AKS25-10 6,8 5 13 8 45,5 29 14 V600, DV1300, DV250 48
25 35 16 4 2 6 AKS25-16 6,8 6 13 9 45,5 29 15 V600, DV1300, DV250 48
35 50 10 2 1/0 8 AKS35-10 8,5 5 20 8 66 45 14 DV1300, DV250 24
35 50 16 2 1/0 6 AKS35-16 8,5 6 20 13 66 45 15 DV1300, DV250 24
35 50 25 2 1/0 4 AKS35-25 8,5 8 20 13 69 45 17 DV1300, DV250 24
50 70 10 1/0 2/0 8 AKS50-10 9,6 5 20 13 66 45 14 DV1300, DV250 24
50 70 16 1/0 2/0 6 AKS50-16 9,6 6 20 13 66 45 15 DV1300, DV250 24
50 70 25 1/0 2/0 4 AKS50-25 9,6 8 20 13 69 45 17 DV1300, DV250 24
50 70 35 1/0 2/0 2 AKS50-35 9,6 9 20 13 71 45 19 DV1300, DV250 24
50 70 50 1/0 2/0 1/0 AKS50-50 9,6 11 20 14,5 75,5 45 23 DV1300, DV250 24
70 95 35 2/0 4/0 2 AKS70-35 11,3 9 20 13 71 45 19 DV1300, DV250 24
70 95 50 2/0 4/0 1/0 AKS70-50 11,3 11 20 14,5 75,5 45 23 DV1300, DV250 24
70 95 70 2/0 4/0 2/0 AKS70-70 11,3 13 20 17 78 45 25 DV1300, DV250 24
95 120 10 4/0 250 8 AKS95-10 12,5 5 25 17 81 60 14 DV1300, DV250 24
95 120 16 4/0 250 6 AKS95-16 12,5 6 25 17 81 60 15 DV1300, DV250 24
95 120 25 4/0 250 4 AKS95-25 12,5 8 25 17 84 60 17 DV1300, DV250 24
95 120 35 4/0 250 2 AKS95-35 12,5 9 25 17 86 60 19 DV1300, DV250 24
95 120 50 4/0 250 1/0 AKS95-50 12,5 11 25 17 90,5 60 23 DV1300, DV250 24
95 120 70 4/0 250 2/0 AKS95-70 12,5 13 25 17 93 60 25 DV1300, DV250 24
95 120 95 4/0 250 4/0 AKS95-95 12,5 15 25 20 93,5 60 25 DV1300, DV250 24
120 150 50 250 300 1/0 AKS120-50 14 11 25 17 90,5 60 23 DV1300, DV250 24
120 150 70 250 300 2/0 AKS120-70 14 13 25 17 93 60 25 DV1300, DV250 24
120 150 95 250 300 4/0 AKS120-95 14 15 25 20 93,5 60 25 DV1300, DV250 24
120 150 120 250 300 250 AKS120-120 14 17 25 22 103,560 30 DV1300, DV250 24
150 185 25 300 350 4 AKS150-25 15,8 8 25 17 84 60 17 DV1300, DV250 24
150 185 35 300 350 2 AKS150-35 15,8 9 25 17 86 60 19 DV1300, DV250 24
150 185 50 300 350 1/0 AKS150-50 15,8 11 25 17 90,5 60 23 DV1300, DV250 24
150 185 70 300 350 2/0 AKS150-70 15,8 13 25 17 93 60 25 DV1300, DV250 24
150 185 95 300 350 4/0 AKS150-95 15,8 15 25 20 93,5 60 25 DV1300, DV250 24
150 185 120 300 350 250 AKS150-120 15,8 17 25 22 103,560 30 DV1300, DV250 24
150 185 150 300 350 300 AKS150-150 15,8 19 25 25 99 60 30 DV1300, DV250 24
185 240 70 350 500 2/0 AKS185-70 17,6 13 32 17 93,5 61 25 DV1300, DV250 12
185 240 95 350 500 4/0 AKS185-95 17,6 15 32 20 94 61 25 DV1300, DV250 12
185 240 120 350 500 250 AKS185-120 17,6 17 32 22 104 60 30 DV1300, DV250 12
185 240 150 350 500 300 AKS185-150 17,6 19 32 25 99,5 61 30 DV1300, DV250 12
185 240 185 350 500 350 AKS185-185 17,6 21 32 27 100 61 30 DV1300, DV250 12
240 35 500 2 AKS240-35 19,8 9 32 17 86,5 61 19 DV1300, DV250 12
240 50 500 1/0 AKS240-50 19,8 11 32 17 91 61 23 DV1300, DV250 12
240 70 500 2/0 AKS240-70 19,8 13 32 17 93,5 61 25 DV1300, DV250 12
240 95 500 4/0 AKS240-95 19,8 15 32 20 93,5 61 25 DV1300, DV250 12
240 120 500 250 AKS240-120 19,8 17 32 22 104 60 30 DV1300, DV250 12
240 150 500 300 AKS240-150 19,8 19 32 25 99,5 60 30 DV1300, DV250 12
240 185 500 350 AKS240-185 19,8 21 32 27 100 61 30 DV1300, DV250 12
240 240 500 500 AKS240-240A 19,8 22,5 32 29 100 61 30 DV1300, DV250 12
300 150 600 300 AKS300-150 22 19 36 25 122,583 30 DV250 9
300 185 600 350 AKS300-185 22 21 36 27 123 83 30 DV250 9
300 240 600 500 AKS300-240A 22 22,5 36 29 123,583 30 DV250 9
300 300 600 600 AKS300SOLID-300 20 26 36 32 124 83 30 DV250 6
400 150 750 300 AKS400-150 25 19 40 25 124 83 30 DV250 6
400 185 750 350 AKS400-185 25 21 40 27 124 83 30 DV250 6
400 240 750 500 AKS400-240A 25 22,5 40 29 124 83 30 DV250 6
400 300 750 600 AKS400-300A 25 24,5 40 31,5 125 83 30 DV250 6
s = strip length (Al), s1 = strip length (Cu)
