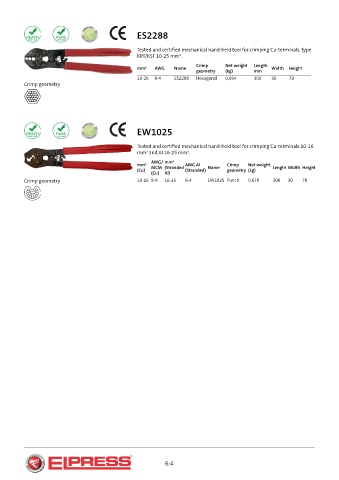

P. 114
ES2288
Tested and certified mechanical hand-held tool for crimping Cu-terminals, type
KRT/KST 10-25 mm².
Crimp Net weight Length
mm² AWG Name Width Height
geometry (kg) mm
10-25 8-4 ES2288 Hexagonal 0,654 300 30 70
Crimp geometry
EW1025
Tested and certified mechanical hand-held tool for crimping Cu-terminals 10-16
mm² and Al 16-25 mm².
AWG/ mm²
mm² MCM (Stranded AWG Al Name Crimp Net weight Length Width Height
(Cu) (Stranded) geometry (kg)
(Cu) Al)
Crimp geometry 10-16 8-6 16-25 6-4 EW1025 Punch 0,678 300 30 70
6:4
