P. 117

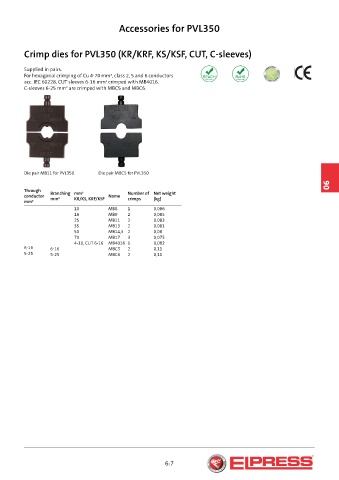

Accessories for PVL350
Crimp dies for PVL350 (KR/KRF, KS/KSF, CUT, C-sleeves)
Supplied in pairs.
For hexagonal crimping of Cu 4-70 mm², class 2, 5 and 6 conductors
acc. IEC 60228, CUT sleeves 6-16 mm² crimped with MB4016.
C-sleeves 6-25 mm² are crimped with MBC5 and MBC6.
Die pair MB11 for PVL350. Die pair MBC5 for PVL350
06
Through
conductor Branching mm² Name Number of Net weight
KR/KS, KRF/KSF
(kg)
crimps
mm²
mm²
10 MB8 1 0,086
16 MB9 2 0,085
25 MB11 2 0,083
35 MB13 2 0,081
50 MB14,5 2 0,08
70 MB17 3 0,075
4-10, CUT 6-16 MB4016 1 0,082
6-16 6-16 MBC5 2 0,11
5-25 5-25 MBC6 2 0,11
6:7
