P. 122

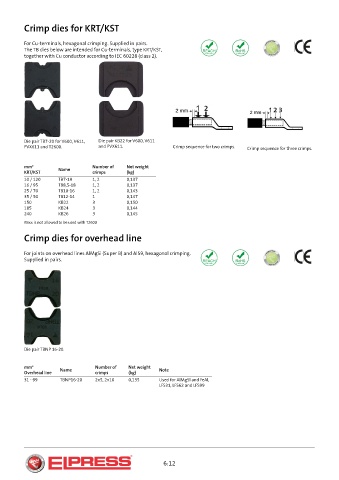

Crimp dies for KRT/KST
For Cu-terminals, hexagonal crimping. Supplied in pairs.
The TB dies below are intended for Cu-terminals, type KRT/KST,
together with Cu conductor according to IEC 60228 (class 2).
Die pair TB7-20 for V600, V611, Die pair KB22 for V600, V611
PVX611 and T2600. and PVX611. Crimp sequence for two crimps. Crimp sequence for three crimps.
mm² Name Number of Net weight
KRT/KST crimps (kg)
10 / 120 TB7-19 1, 2 0,137
16 / 95 TB8,5-18 1, 2 0,137
25 / 70 TB10-16 1, 2 0,143
35 / 50 TB12-14 1 0,147
150 KB22 3 0,150
185 KB24 3 0,144
240 KB26 3 0,145
KBxx is not allowed to be used with T2600
Crimp dies for overhead line
For joints on overhead lines AlMgSi (Super B) and Al59, hexagonal crimping.
Supplied in pairs.
Die pair TBNP 16-20.
mm² Name Number of Net weight Note
Overhead line crimps (kg)
31 - 99 TBNP16-20 2x5, 2x10 0,135 Used for AlMgSl and FeAl,
LFS31, LFS62 and LFS99
6:12
