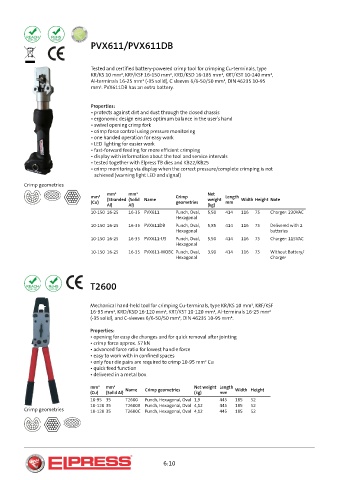

PVX611/PVX611DB

Tested and certified battery-powered crimp tool for crimping Cu-terminals, type
KR/KS 10 mm², KRF/KSF 16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm²,
Al-terminals 16-25 mm² (-35 solid), C sleeves 6/6-50/50 mm², DIN 46235 10-95
mm². PVX611DB has an extra battery.

Properties:
• protects against dirt and dust through the closed chassis
• ergonomic design ensures optimum balance in the user’s hand
• swivel opening crimp fork
• crimp force control using pressure monitoring
• one handed operation for easy work
• LED lighting for easier work
• fast-forward feeding for more efficient crimping
• display with information about the tool and service intervals
• tested together with Elpress TB dies and KB22/KB25
• crimp monitoring via display when the correct pressure/complete crimping is not
achieved (warning light LED and signal)
Crimp geometries
mm² mm² Net
mm² Crimp Length
(Cu) (Stranded (Solid Name geometries weight mm Width Height Note
Al) Al) (kg)
10-150 16-25 16-35 PVX611 Punch, Oval, 5,50 414 116 75 Charger: 230VAC
Hexagonal
10-150 16-25 16-35 PVX611DB Punch, Oval, 5,85 414 116 75 Delivered with 2
Hexagonal batteries
10-150 16-25 16-35 PVX611-US Punch, Oval, 5,50 414 116 75 Charger: 115VAC
Hexagonal
10-150 16-25 16-35 PVX611-WOBC Punch, Oval, 3,90 414 116 75 Without Battery/
Hexagonal Charger

T2600

Mechanical hand-held tool for crimping Cu-terminals, type KR/KS 10 mm², KRF/KSF
16-95 mm², KRD/KSD 16-120 mm², KRT/KST 10-120 mm², Al-terminals 16-25 mm²
(-35 solid), and C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².

Properties:
• opening for easy die changes and for quick removal after jointing
• crimp force approx. 57 kN
• advanced force ratio for lowest handle force
• easy to work with in confined spaces
• only four die pairs are required to crimp 10-95 mm² Cu
• quick feed function
• delivered in a metal box

mm² mm² Name Crimp geometries Net weight Length Width Height
(Cu) (Solid Al) (kg) mm
10-95 35 T2600 Punch, Hexagonal, Oval 1,9 445 185 52
10-120 35 T2600B Punch, Hexagonal, Oval 4,12 445 185 52
Crimp geometries 10-120 35 T2600C Punch, Hexagonal, Oval 4,12 445 185 52
